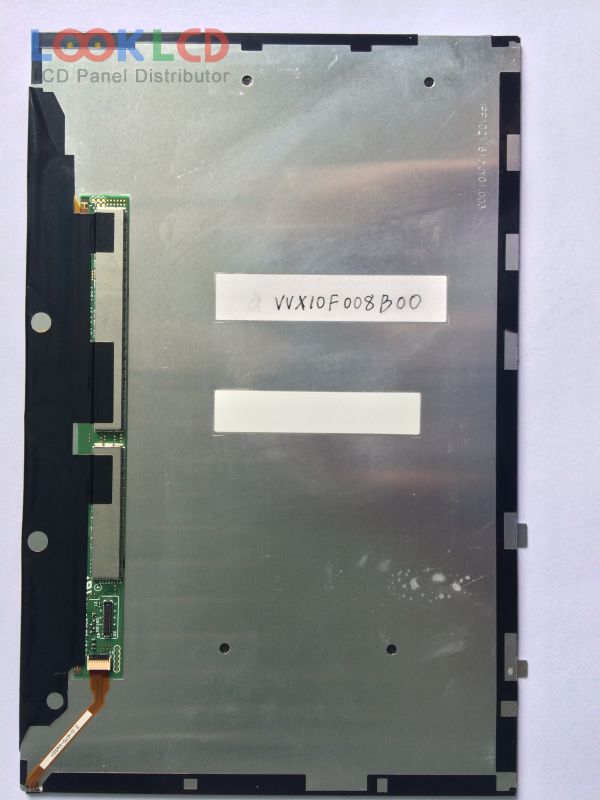

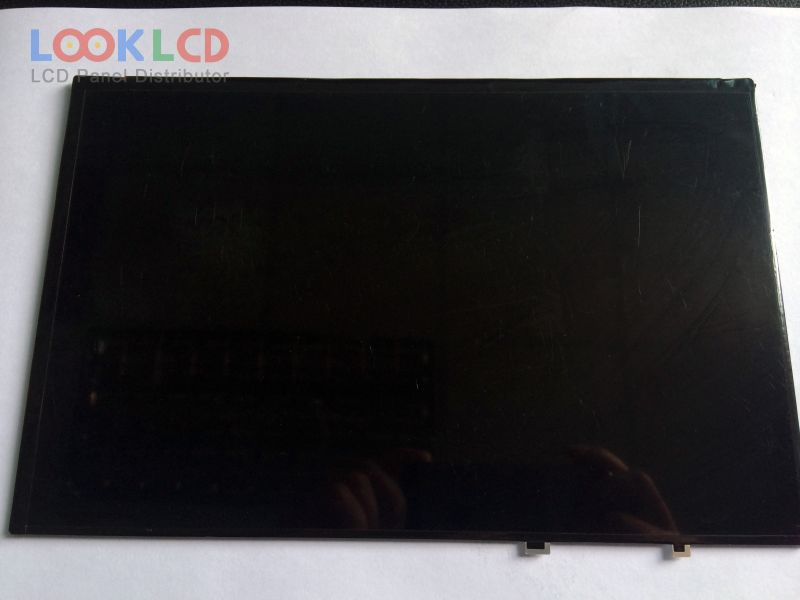

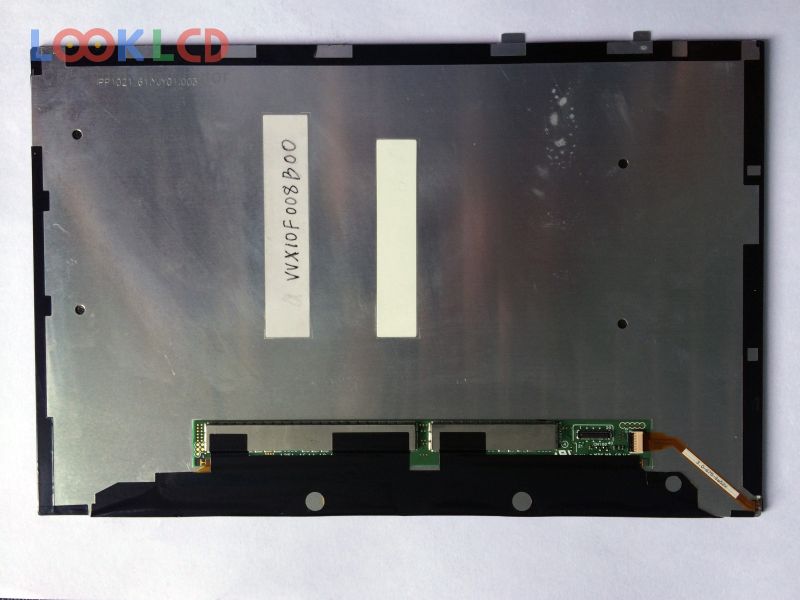

| Nomor Bagian | VVX10F008B00 |
| Merek | Panasonic |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 385 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek panel | Panasonic |
| model panel | VVX10F008B00 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.1 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 217.44×135.9 mm |
| garis besar | 228.96×148.14×4.29 mm |
| permukaan | Hard coating |
| kecerahan | 385 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193174% |
| waktu merespon | 30 (Max.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 8S6PWLEDWithout Driver |
| antarmuka sinyal | MIPI (4 data lanes), 40 pins |
| tegangan masukan | 3.7V (Typ.) |
| aplikasi | PAD |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| VVX10F002A00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| AMS767KC04-1 | Samsung | 7.7 | 1280×800 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HV089WU1-1E0 | HYDIS | 8.9 | 1920×1200 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
