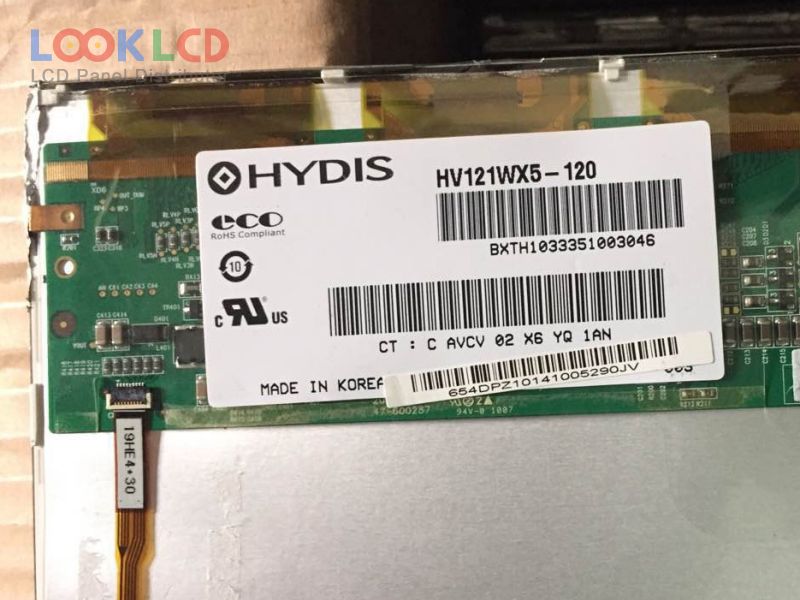

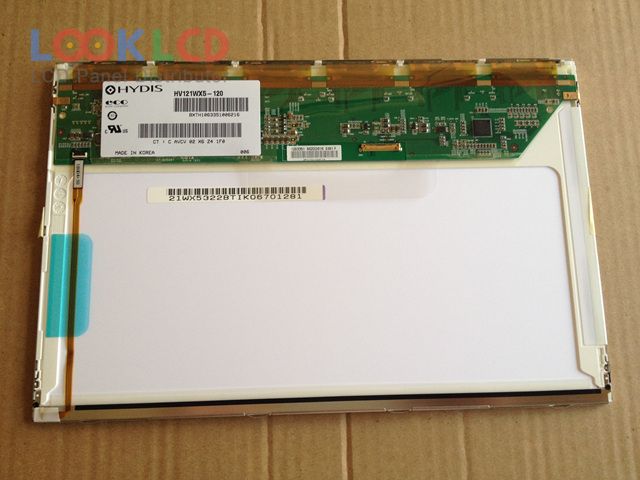

| Nomor Bagian | HV121WX5-120 |
| Merek | HYDIS |
| Ukuran | 12.1 |
| Aplikasi | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | HYDIS |
| model panel | HV121WX5-120 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | AFFS, Normally Black, Transmissive |
| daerah aktif | 261.12×163.2 mm |
| garis besar | 276.8×180×6.8 mm |
| permukaan | |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 12S4PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | eDP (1 Lane), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
