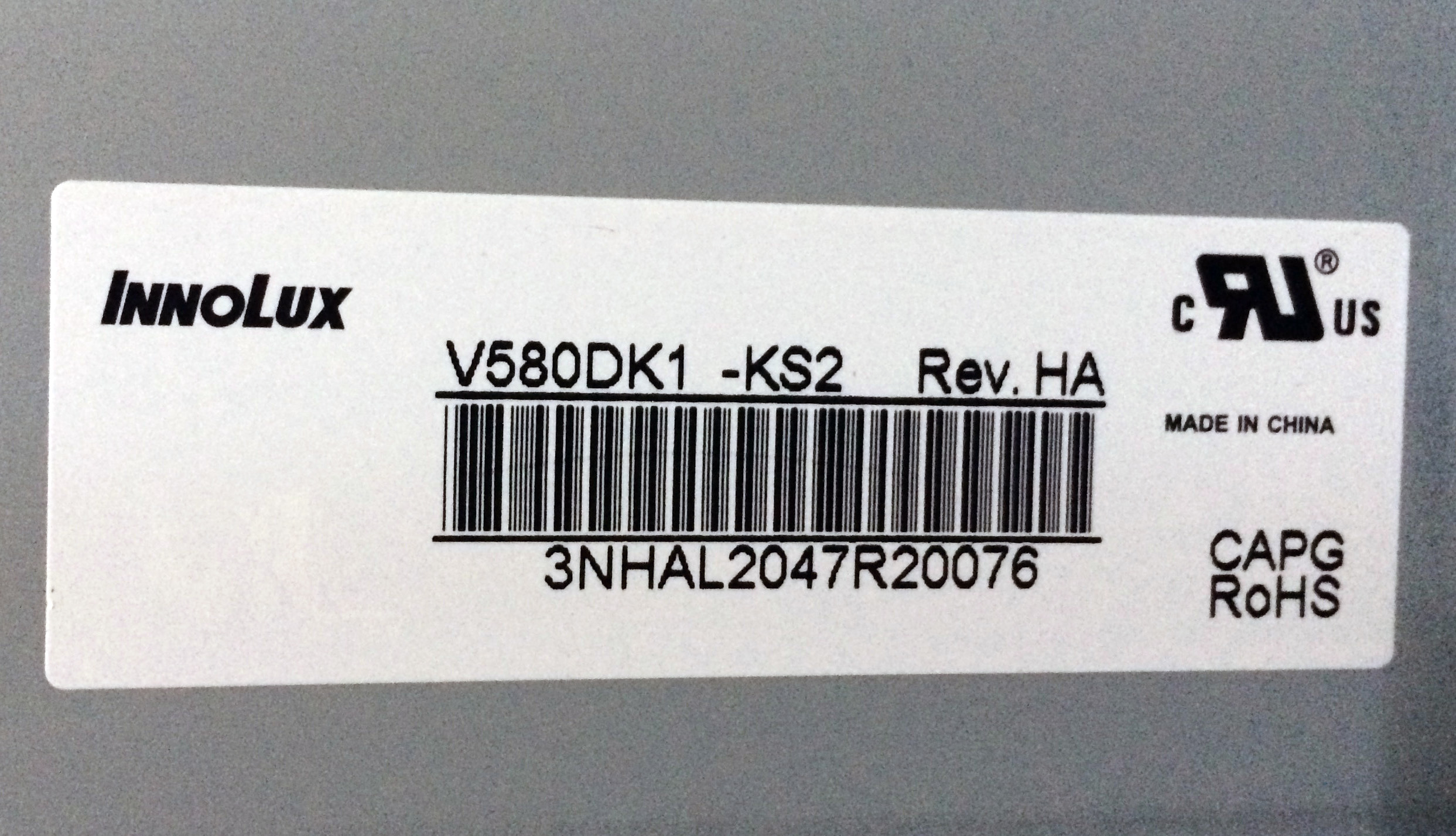

| Nomor Bagian | V580DK1-KS2 Rev.HA |
| Merek | Innolux |
| Ukuran | 58 |
| Aplikasi | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antarmuka | |
| pabrikan | Innolux |
| ukuran layar | 58 inch |
| nomor piksel | 3840(RGB)×2160 (UHD) 76PPI |
| area aktif (mm) | 1270.08 × 721.44 (H×V) |
| area bezel (mm) | 1275.3 × 726.7 (H×V) |
| pencahayaan | 360 (Typ.)(cd/m²) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 1.07B 98% DCI-P3 |
| massa | 19.1±0.1Kgs |
| tingkat penyegaran | 120Hz |
| nama model | V580DK1-KS2 Rev.HA |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 1290.3 × 744.7 × 28.6 (H×V×D) |
| perlakuan | Glare (Haze 0%), Hard coating (3H) |
| rasio kontras | 3000 : 1 (Typ.) (TM) |
| mode kerja | Super MVA, Normally Black, Transmissive |
| tanggapan | 6.5 (Typ.)(G to G) ms |
| lampu latar | WLED , 30K hours , With LED Driver |
| digunakan untuk | TV Sets |
| layar sentuh | Without |
