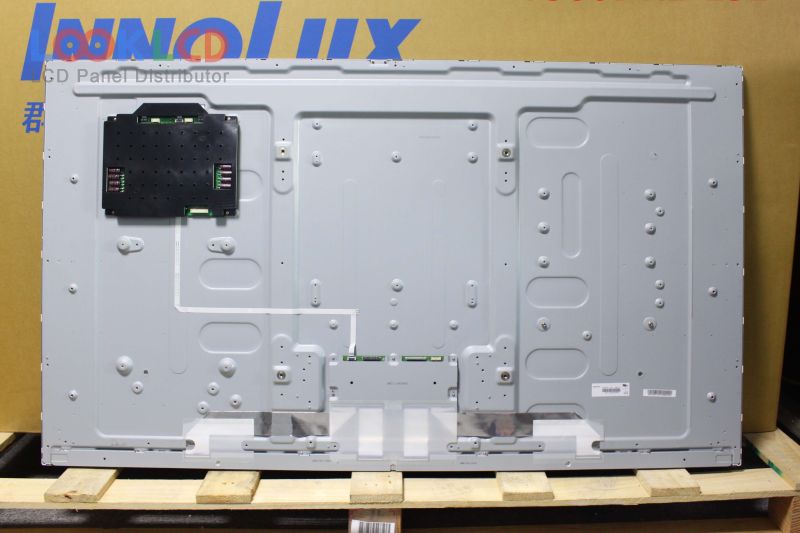

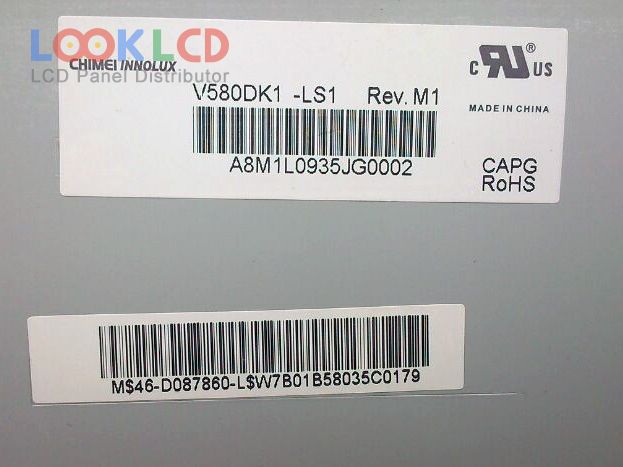

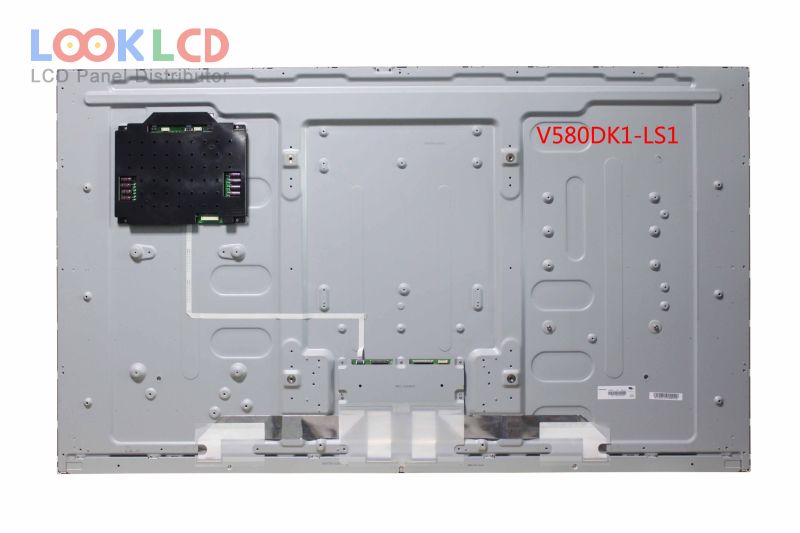

| Nomor Bagian | V580DK1-LS1 |
| Merek | Innolux |
| Ukuran | 58 |
| Aplikasi | LCTV |
| Resolusi | 3840×2160 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 5000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CHIMEI INNOLUX |
| model panel | V580DK1-LS1 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 58 inch |
| resolusi | 3840(RGB)×2160 , UHD |
| mode tampilan | Super MVA, Normally Black, Transmissive |
| daerah aktif | 1270.08×721.44 mm |
| garis besar | 1290.3×744.7×28.6 mm |
| permukaan | Antiglare (Haze 1%) |
| kecerahan | 400 cd/m² (Typ.) |
| rasio kontras | 5000:1 (Typ.) |
| menampilkan warna | 1.07B (8-bit + Hi-FRC), CIE193172% |
| waktu merespon | 6.5 (Typ.)(G to G) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekuensi | 120Hz (30Hz Input) |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (4 ch, 10-bit), 102 pins |
| tegangan masukan | 12.0V (Typ.) |
| aplikasi | LCTV |
