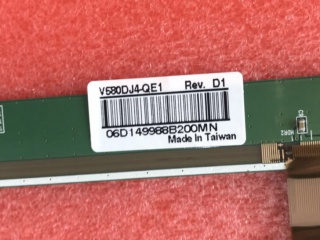

| Nomor Bagian | V580DJ4-QE1 Rev.T2 |
| Merek | Innolux |
| Ukuran | 58 |
| Aplikasi | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | CELL, a-Si TFT-LCD |
| Kecerahan | |
| CR | 5000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antarmuka | V-by-One |
| pabrikan | Innolux |
| nama model | V580DJ4-QE1 Rev.T2 |
| ukuran layar | 58 inch |
| tipe layar | CELL, a-Si TFT-LCD |
| nomor piksel | 3840(RGB)×2160 (UHD) 76PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 1270.08 × 721.44 (H×V) |
| garis besar (mm) | 1282.88 × 734.44 × 1.32 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating (3H), Reflection 1.8% (Typ.) |
| pencahayaan | 0 cd/m² |
| rasio kontras | 5000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 9.5 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | Super MVA, Normally Black, Transmissive |
| ketebalan kaca | - |
| keterusan | 5.0% (Typ.)(with Polarizer) |
| kedalaman warna | 1.07B 85% NTSC |
| lampu latar | No B/L |
| massa | 2.80±0.14Kgs |
| digunakan untuk | TV Sets |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| daftar ic driver | Built-in COF 12 source + 12 gate chips |
| jenis sinyal | V-by-One 8 lane , Connector 51 pins |
| sumber tegangan | 12.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
