| Nomor Bagian | V420H1-LH5 |
| Merek | Innolux |
| Ukuran | 42 |
| Aplikasi | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 4000:1 |
| Warna | 16.7M/1.07B |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | CMO |

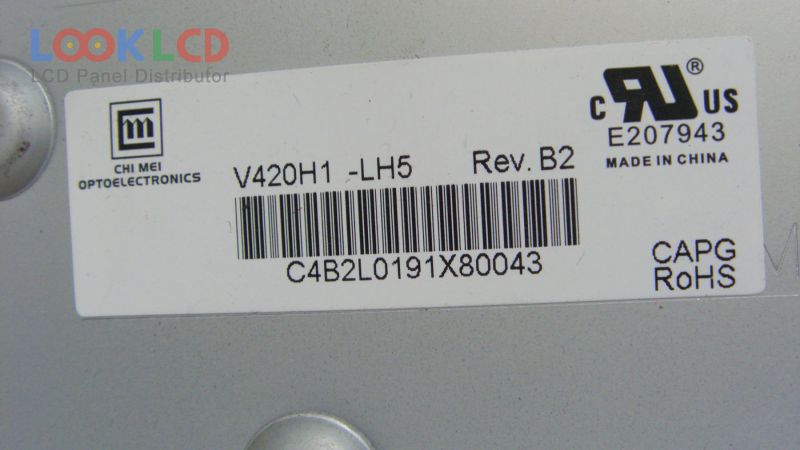

| model panel | V420H1-LH5 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 42 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | Super MVA, Normally Black, Transmissive |
| daerah aktif | 930.24×523.26 mm |
| garis besar | 983×576 mm |
| permukaan | Antiglare (Haze 11%), Hard coating (3H) |
| kecerahan | 500 cd/m² (Typ.) |
| rasio kontras | 4000:1 (Typ.) |
| menampilkan warna | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC), CIE193172% |
| waktu merespon | 4 (Typ.)(G to G) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekuensi | 120Hz (60Hz Input) |
| jenis lampu | 12 pcsCCFLEmbedded (Inverter) |
| antarmuka sinyal | LVDS (2 ch, 10-bit), 51 pins |
| tegangan masukan | 12.0V (Typ.) |
| aplikasi | LCTV |
