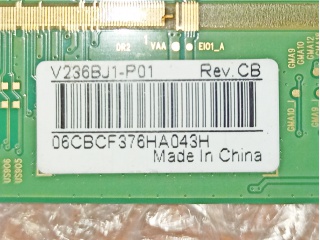

| Nomor Bagian | V236BJ1-P01 Rev.CB |
| Merek | Innolux |
| Ukuran | 23.6 |
| Aplikasi | TV Sets |
| Resolusi | 1366×768 |
| Komposisi | CELL , a-Si TFT-LC |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | LVDS |
| pabrikan | Innolux |
| nama model | V236BJ1-P01 Rev.CB |
| ukuran layar | 23.6 inch |
| tipe layar | CELL , a-Si TFT-LCD |
| nomor piksel | 1366(RGB)×768 (WXGA) 66PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 521.471 × 293.184 (H×V) |
| garis besar (mm) | 535.06 × 307.34 × 1.32 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare (Haze 1%) |
| pencahayaan | 0 cd/m² |
| rasio kontras | 3000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 8.5 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | MVA, Normally Black, Transmissive |
| ketebalan kaca | 0.50+0.50 mm |
| keterusan | 5.6% (Typ.)(with Polarizer) |
| kedalaman warna | 16.7M 69% NTSC |
| lampu latar | No B/L |
| massa | 510g (Typ.) |
| digunakan untuk | TV Sets |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| daftar ic driver | Built-in COF 2 source chips |
| jenis sinyal | LVDS (1 ch, 8-bit) , 30 pins Connector |
| sumber tegangan | 12.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
