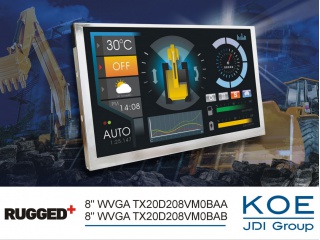

| Nomor Bagian | TX20D208VM0BAA |
| Merek | HITACHI |
| Ukuran | 8.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | HITACHI |
| model panel | TX20D208VM0BAA |
| ukuran panel | 8.0" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×480, WVGA, 116PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 174(W)×104.4(H) mm |
| bukaan bezel | 177.4(W)×107.8(H) mm |
| ukuran garis besar | 190.8(W)×120.5(H) ×16.2(D) mm |
| permukaan | - |
| kecerahan | 1200 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | IPS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 30 (Max.)(Tr+Td) |
| menampilkan warna | 16.7M 70% NTSC |
| jenis lampu | WLED , 100K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | 275g (Typ.) |
| aplikasi | Industrial Outdoor High Brightness Automotive Display |
| antarmuka sinyal | LVDS (1 ch, 8-bit) , 20 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
