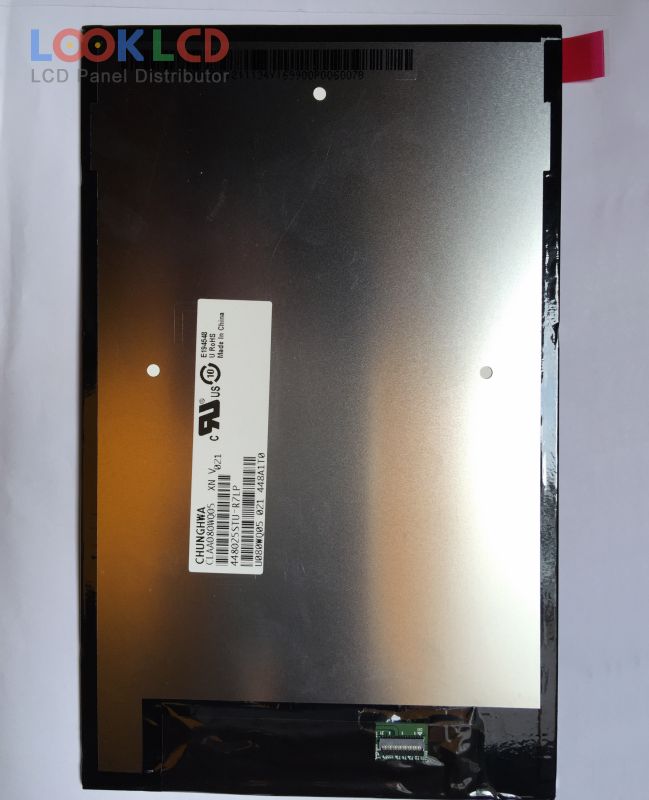

| Nomor Bagian | CLAA080WQ05 |
| Merek | CPT |
| Ukuran | 8.0 |
| Aplikasi | PAD |
| Resolusi | 800×1280 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek panel | CPT |
| model panel | CLAA080WQ05 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 8.0 inch |
| resolusi | 800(RGB)×1280 , WXGA |
| mode tampilan | HFFS, Normally Black, Transmissive |
| daerah aktif | 107.64×172.224 mm |
| garis besar | 114.6×184.7×4.56 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193158% |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 3S7PWLEDWithout Driver |
| antarmuka sinyal | MIPI (4 data lanes), 31 pins |
| tegangan masukan | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| aplikasi | PAD |
