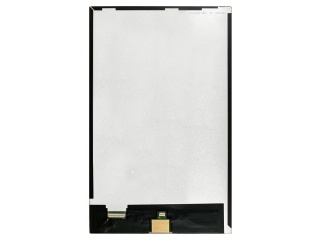

| Nomor Bagian | TV101WUM-NM1 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | 8S4P |
| Antarmuka | MIPI |
| pabrikan | BOE |
| nama model | TV101WUM-NM1 |
| ukuran layar | 10.1 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1200(RGB)×1920 (WUXGA) 225PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 135.36 × 216.576 (H×V) |
| garis besar (mm) | 143 × 227.926 × 4.4 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare, Hard coating, Antireflection |
| pencahayaan | - |
| rasio kontras | 900 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | 8S4P WLED , 30K hours , No Driver |
| massa | 145g (Max.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | MIPI (4 data lanes) Connector |
| sumber tegangan | 3.3V (Typ.)(VDD) |
| maks. peringkat | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
