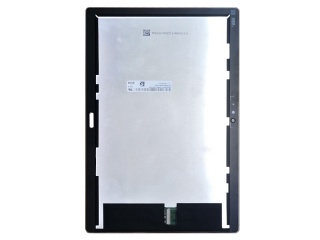

| Nomor Bagian | TV101WUM-LL1 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | a-Si TFT-LCD , Assem |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S4P |
| Antarmuka | MIPI |
| merek panel | BOE |
| ukuran panel | 10.1" |
| resolusi | 1200(RGB)×1920, WUXGA, 225PPI |
| area tampilan | 135.36(W)×216.576(H) mm |
| ukuran garis besar | 162.1(W)×237.14(H) ×4.6(D) mm |
| kecerahan | 380 cd/m² (Typ.) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M 99% sRGB |
| frekuensi | 60Hz |
| berat panel | 190g (Typ.) |
| antarmuka sinyal | MIPI (4 data lanes) , 45 pins Connector |
| tegangan masukan | 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE) |
| lingkungan | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| model panel | TV101WUM-LL1 |
| tipe panel | a-Si TFT-LCD , Assembly |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Hard coating |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | - |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| jenis lampu | 8S4P WLED , Without Driver |
| layar sentuh | On-Cell Touch |
| aplikasi | Pad & Tablet |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
