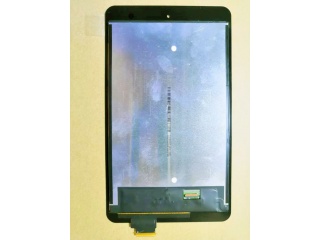

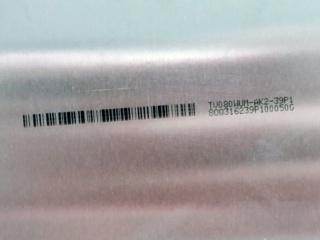

| Nomor Bagian | TV080WUM-AK2 |
| Merek | BOE |
| Ukuran | 8.0 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | Assembly , a-Si TF |
| Kecerahan | |
| CR | 850:1 |
| Warna | 16.7M |
| Lampu latar | 7S3P |
| Antarmuka | MIPI |
| pabrikan | BOE |
| nama model | TV080WUM-AK2 |
| ukuran layar | 8.0 inch |
| tipe layar | Assembly , a-Si TFT-LCD |
| nomor piksel | 1200(RGB)×1920 (WUXGA) 283PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 107.64 × 172.224 (H×V) |
| garis besar (mm) | 122.2 × 210.95 × 3.95 (H×V×D) |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 850 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | - |
| kedalaman warna | 16.7M 63% NTSC |
| lampu latar | 7S3P WLED , 15K hours , No Driver |
| massa | 130g (Max.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | PCAP, Optical Bonding |
| jenis sinyal | MIPI (4 data lanes) , 39 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
