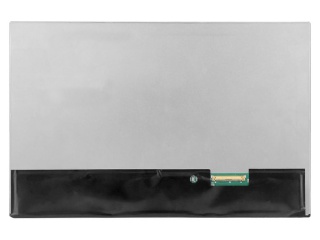

| Nomor Bagian | TM101JDHG38 |
| Merek | TIANMA |
| Ukuran | 10.1 |
| Aplikasi | Industrial Medical I |
| Resolusi | 1280×800 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | 6S5P |
| Antarmuka | LVDS |
| pabrikan | TIANMA |
| nama model | TM101JDHG38 |
| ukuran layar | 10.1 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1280(RGB)×800 (WXGA) 149PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 216.96 × 135.6 (H×V) |
| garis besar (mm) | 231.22 × 150.6 × 6.6 (H×V×D) |
| area bezel (mm) | 219.96 × 138.6 (H×V) |
| perlakuan | Hard coating |
| pencahayaan | 400 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | SFT, Normally Black, Transmissive |
| kedalaman warna | 262K/16.7M 50% NTSC |
| lampu latar | 6S5P WLED , 30K hours , With LED Driver |
| massa | 276g |
| digunakan untuk | Industrial Medical Imaging VOIP Phone |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (1 ch, 6/8-bit) , Connector 40 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
