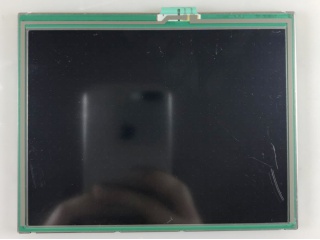

| Nomor Bagian | TCG057VG1BB-G00 |
| Merek | Kyocera |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 640×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | , |
| Antarmuka | |
| merek panel | Kyocera |
| ukuran panel | 5.7" |
| resolusi | 640(RGB)×480, VGA, 141PPI |
| area tampilan | 115.2(W)×86.4(H) mm |
| kecerahan | - |
| sudut pandang | 80/80/80/70 (Typ.)(CR≥5) |
| tampilan terbaik di | - |
| menampilkan warna | 262K |
| frekuensi | - |
| berat panel | - |
| lingkungan | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | TCG057VG1BB-G00 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 400:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 10/25 (Typ.)(Tr/Td) |
| jenis lampu | , With LED Driver |
| layar sentuh | Embeded Touch |
| aplikasi | Industrial |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| AA057VG12 | Mitsubishi | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| ET0570B0DHU | EDT | 5.7 | 640×480 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| LQ6NC02 | SHARP | 5.7 | 240×240 |
| LTA057A349F | TOSHIBA | 5.7 | 320×240 |
| PD057VU7 | E Ink | 5.7 | 320×240 |
| PD057VU9 | E Ink | 5.7 | 640×480 |
