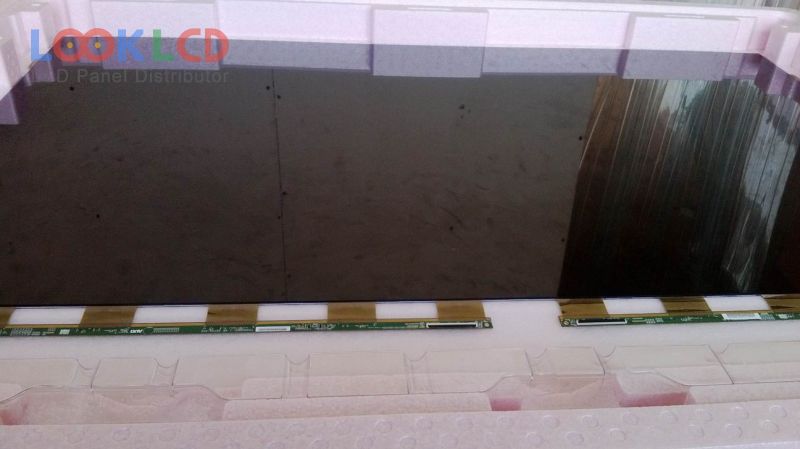

T550HVN01.3 CELL

T550HVN01.3 CELL
T550HVN01.3 CELL thumb
Merek
AUO
Ukuran
55
Aplikasi
LCTV
Resolusi
1920×1080
Komposisi
CELL
Kecerahan
0
CR
4000:1
Warna
1.07B
Lampu latar
No B/L
Antarmuka
LVDS
In Stock
3035
Spesifikasi

Nomor Bagian T550HVN01.3 CELL
MerekAUO
Ukuran55
AplikasiLCTV
Resolusi1920×1080
KomposisiCELL
Kecerahan0
CR4000:1
Warna1.07B
Lampu latarNo B/L
AntarmukaLVDS
merek panelAUO
model panelT550HVN01.3 CELL
tipe panel a-Si TFT-LCD , CELL
ukuran panel55 inch
resolusi1920(RGB)×1080 , FHD
mode tampilanAMVA3, Normally Black, Transmissive
daerah aktif1209.6×680.4 mm
garis besar1228.8×699.4 mm
permukaanAntiglare (Haze 2%), Hard coating (3H)
kedalaman kaca0.50+0.50 mm
keterusan6.6% (Typ.)(with Polarizer)
rasio kontras4000:1 (Typ.)
menampilkan warna1.07B (10-bit)
waktu merespon6.5 (Typ.)(G to G)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi120Hz
antarmuka sinyalLVDS (4 ch, 10-bit), 92 pins
tegangan masukan12.0V (Typ.)
aplikasiLCTV
Model Keluarga
LC550DUY-SHA2 LG Display 55 1920×1080
LC550EGY-SHM2 LG Display 55 3840×2160
LSC550FN06 Samsung 55 3840×2160
LTA550HF02 Samsung 55 1920×1080
T546HW01 V0 AUO 55 1920×1080
T550HVN01.3 CELL AUO 55 1920×1080
T550HVN01.5 CELL AUO 55 1920×1080
T550HVN02.1 AUO 55 1920×1080
T550HVN04.0 AUO 55 1920×1080
T550HVN04.1 AUO 55 1920×1080
