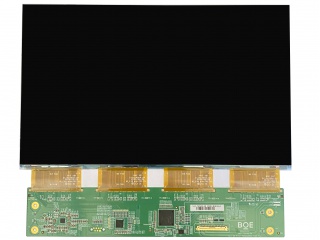

| Nomor Bagian | RV101FBB-N00 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | 3D Printer |
| Resolusi | 4920×2880 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 400:1 |
| Warna | Monochrome |
| Lampu latar | No |
| Antarmuka | eDP |
| merek panel | BOE |
| model panel | RV101FBB-N00 |
| ukuran panel | 10.1" |
| tipe panel | a-Si TFT-LCD, CELL |
| resolusi | 4920×2880, 564PPI |
| format piksel | Rectangle |
| area tampilan | 221.4(W)×129.6(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 227.43(W)×139.5(H) ×0.95(D) mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 0 cd/m² |
| rasio kontras | 400:1 (Min.) (TM) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| mode tampilan | ADS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 35 (Max.)(Tr+Td) |
| kedalaman kaca | - |
| keterusan | 6.0% (Typ.) |
| menampilkan warna | Monochrome |
| jenis lampu | No B/L |
| frekuensi | 60Hz |
| layar sentuh | Without |
| ic pengemudi | COGBuilt-in 4 source chips |
| berat panel | TBD |
| aplikasi | 3D Printer |
| antarmuka sinyal | eDP (4 Lanes) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C |
