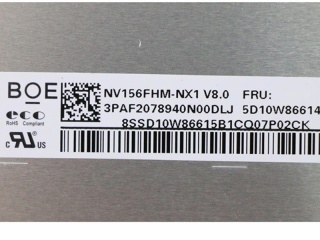

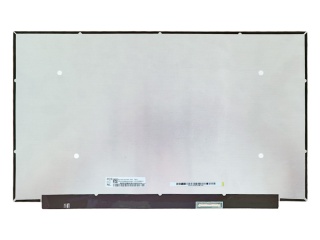

| Nomor Bagian | NV156FHM-NX1 |
| Merek | BOE |
| Ukuran | 15.6 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | BOE |
| model | NV156FHM-NX1 |
| ukuran diagonal | 15.6 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.16(H)×193.59(V) mm |
| garis besar redup. | 350.66(H)×214.75(V) ×3.2(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 250 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | ADS, Normally Black, Transmissive |
| warna pendukung | 16.7M 45% NTSC |
| sumber cahaya | WLED [11S4P] , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop Gaming |
| kecepatan bingkai | 120Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
