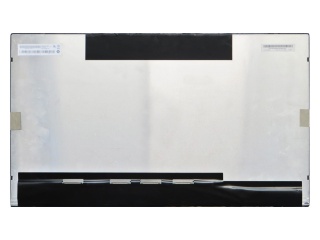

| Nomor Bagian | M270DTN01.00E |
| Merek | AUO |
| Ukuran | 27.0 |
| Aplikasi | Desktop Monitor Gami |
| Resolusi | 2560×1440 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 18S4P |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | M270DTN01.00E |
| ukuran panel | 27.0" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 2560(RGB)×1440, Quad-HD, 108PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 596.736(W)×335.664(H) mm |
| bukaan bezel | 601.6(W)×340.15(H) mm |
| ukuran garis besar | 613.6(W)×356.85(H) ×10.9(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | 85/85/80/80 (Typ.)(CR≥10) |
| mode tampilan | TN, Normally White, Transmissive |
| tampilan terbaik di | - |
| waktu merespon | 3.5/1.5 (Typ.)(Tr/Td) |
| menampilkan warna | 16.7M 72% NTSC |
| jenis lampu | 18S4P WLED , 30K hours , Without Driver |
| frekuensi | 165Hz |
| layar sentuh | Without |
| berat panel | 2.20/2.31Kgs (Typ./Max.) |
| aplikasi | Desktop Monitor Gaming |
| antarmuka sinyal | LVDS (8 ch, 8-bit) , 130 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
