AUO M240HW02 V5 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

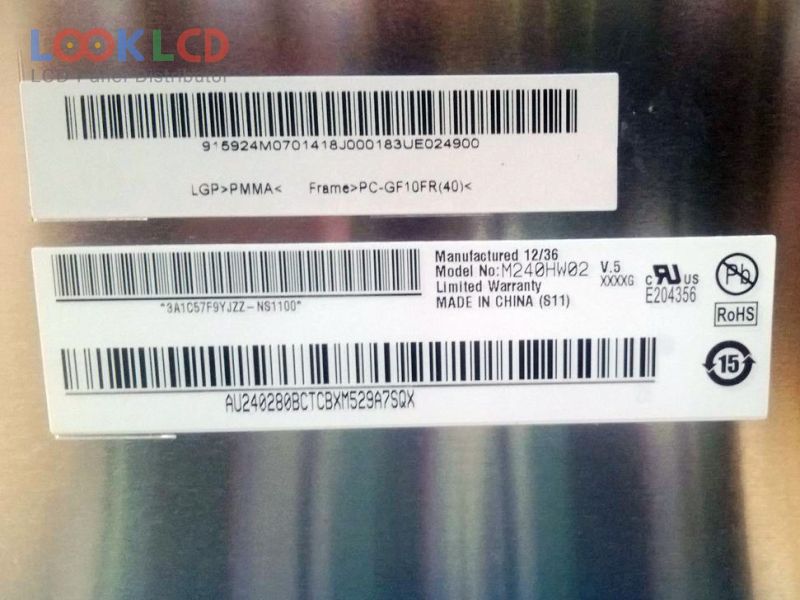

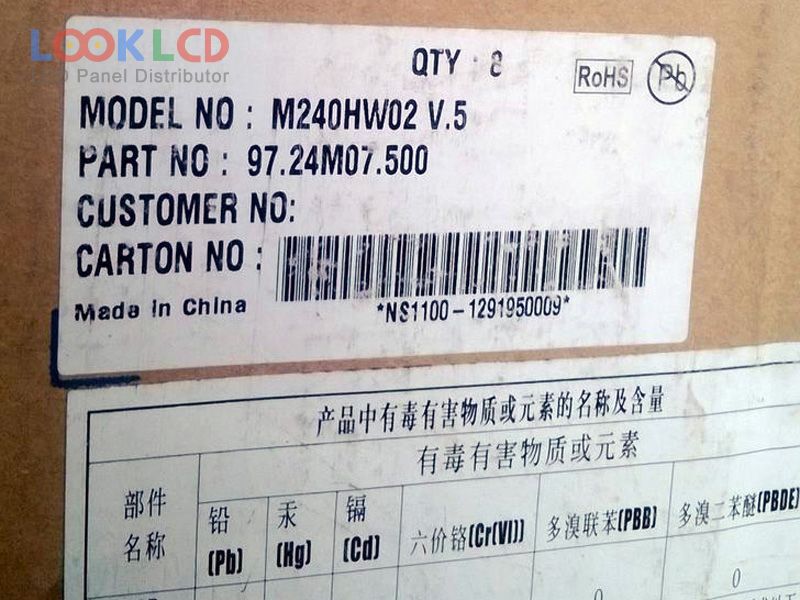

M240HW02 V5

M240HW02 V5
M240HW02 V5
M240HW02 V5 thumb M240HW02 V5 thumb
Merek
AUO
Ukuran
24.0
Aplikasi
DMPC
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
350
CR
5000:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
LVDS
In Stock
12769
Spesifikasi

Nomor Bagian M240HW02 V5
MerekAUO
Ukuran24.0
AplikasiDMPC
Resolusi1920×1080
KomposisiLCM
Kecerahan350
CR5000:1
Warna16.7M
Lampu latarWLED
AntarmukaLVDS
merek panelAUO
model panelM240HW02 V5
tipe panel a-Si TFT-LCD , LCM
ukuran panel24.0 inch
resolusi1920(RGB)×1080 , FHD
mode tampilanVA, Normally Black, Transmissive
daerah aktif531.36×298.89 mm
garis besar556×323.2 mm
permukaanAntiglare, Hard coating (3H)
kecerahan350 cd/m² (Typ.)
rasio kontras5000:1 (Typ.)
menampilkan warna16.7M (8-bit), CIE193172%
waktu merespon7/5 (Typ.)(Tr/Td)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi120Hz
jenis lampu20S4P×2CNWLEDWithout Driver
antarmuka sinyalLVDS (4 ch, 8-bit), 66 pins
tegangan masukan5.0V (Typ.)
aplikasiDMPC
Model Keluarga
M240HTN01.1 AUO 24.0 1920×1080
M240HVN01.0 AUO 24.0 1920×1080
M240HVN02.0 AUO 24.0 1920×1080
M240HW01 V0 AUO 24.0 1920×1080
M240HW01 V1 AUO 24.0 1920×1080
M240HW01 V2 AUO 24.0 1920×1080
M240HW01 VB AUO 24.0 1920×1080
M240HW01 VC AUO 24.0 1920×1080
M240HW02 V6 AUO 24.0 1920×1080
M240HW02 V7 AUO 24.0 1920×1080
