LG Display LM185WH1-TLF4 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD


LM185WH1-TLF4

LM185WH1-TLF4

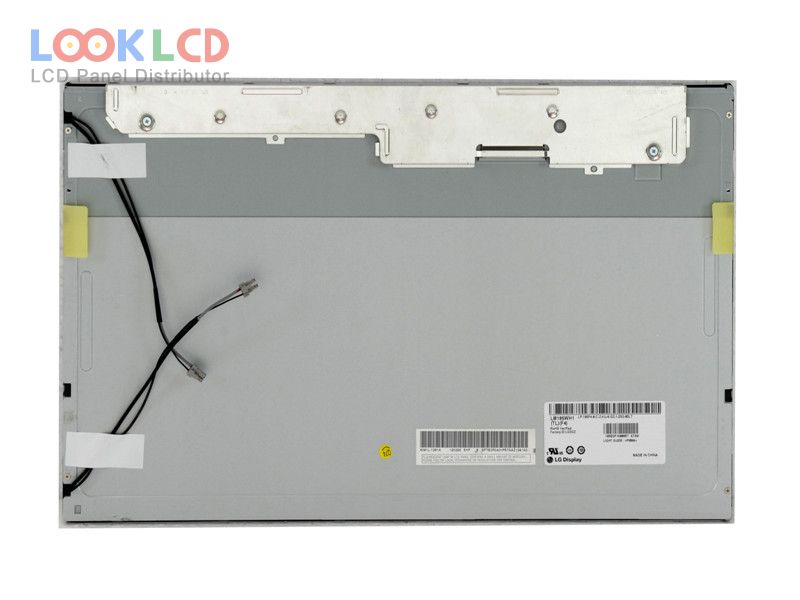

LM185WH1-TLF4 thumb
Merek
LG Display
Ukuran
18.5
Aplikasi
DMPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
250
CR
1000:1
Warna
16.7M
Lampu latar
CCFL
Antarmuka
LVDS
In Stock
7251
Spesifikasi

Nomor Bagian LM185WH1-TLF4
MerekLG Display
Ukuran18.5
AplikasiDMPC
Resolusi1366×768
KomposisiLCM
Kecerahan250
CR1000:1
Warna16.7M
Lampu latarCCFL
AntarmukaLVDS
merek panelLG Display
model panelLM185WH1-TLF4
tipe panel a-Si TFT-LCD , LCM
ukuran panel18.5 inch
resolusi1366(RGB)×768 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif409.8×230.4 mm
permukaan
kecerahan250 cd/m² (Typ.)
rasio kontras1000:1 (Typ.)
menampilkan warna16.7M (6-bit + Hi-FRC), CIE193172%
waktu merespon5 (Typ.)(Tr+Td)
sudut pandang85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuCCFL
antarmuka sinyalLVDS (2 ch, 8-bit)
aplikasiDMPC
Model Keluarga
LM185WH1-TLA1 LG Display 18.5 1366×768
LM185WH1-TLD1 LG Display 18.5 1366×768
LM185WH1-TLD3 LG Display 18.5 1366×768
LM185WH1-TLF1 LG Display 18.5 1366×768
LM185WH1-TLF4 LG Display 18.5 1366×768
LM185WH1-TLH1 LG Display 18.5 1366×768
LM185WH2-T2BB LG Display 18.5 1366×768
LM185WH2-TLA1 LG Display 18.5 1366×768
LM185WH2-TLD1 LG Display 18.5 1366×768
LM185WH2-TLE2 LG Display 18.5 1366×768
