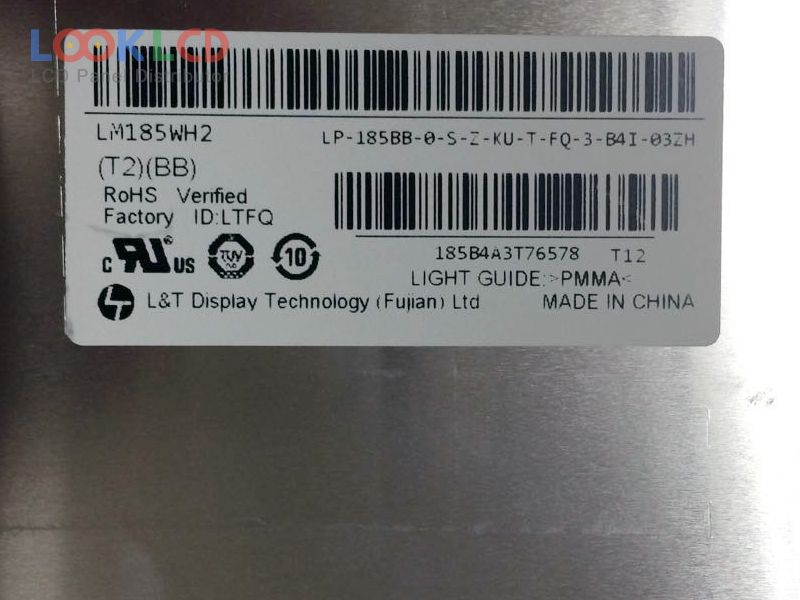

LM185WH2-T2BB

LM185WH2-T2BB
LM185WH2-T2BB thumb
Merek
LG Display
Ukuran
18.5
Aplikasi
DMPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
200
CR
600:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
In Stock
12831
Spesifikasi

Nomor Bagian LM185WH2-T2BB
MerekLG Display
Ukuran18.5
AplikasiDMPC
Resolusi1366×768
KomposisiLCM
Kecerahan200
CR600:1
Warna16.7M
Lampu latarWLED
Antarmuka
merek panelL&T
model panelLM185WH2-T2BB
tipe panel a-Si TFT-LCD , LCM
ukuran panel18.5 inch
resolusi1366(RGB)×768 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif409.8×230.4 mm
garis besar430.4×254.6 mm
permukaanAntiglare, Hard coating (3H)
kecerahan200 cd/m² (Typ.)
rasio kontras600:1 (Typ.)
menampilkan warna16.7M (6-bit + Hi-FRC), CIE193168%
waktu merespon1.1/3.9 (Typ.)(Tr/Td)
sudut pandang45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuWLEDWithout Driver
aplikasiDMPC
