LTN154X3-L0D-G

LTN154X3-L0D-G
LTN154X3-L0D-G
LTN154X3-L0D-G

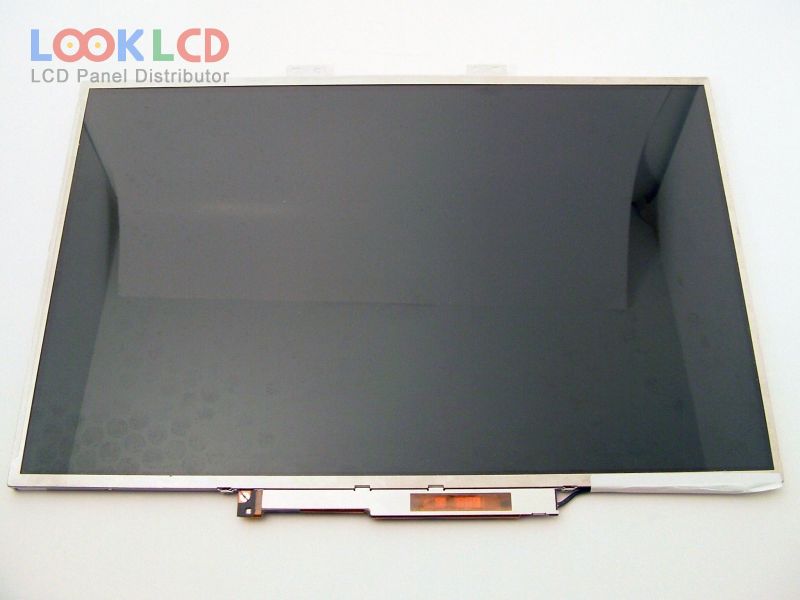

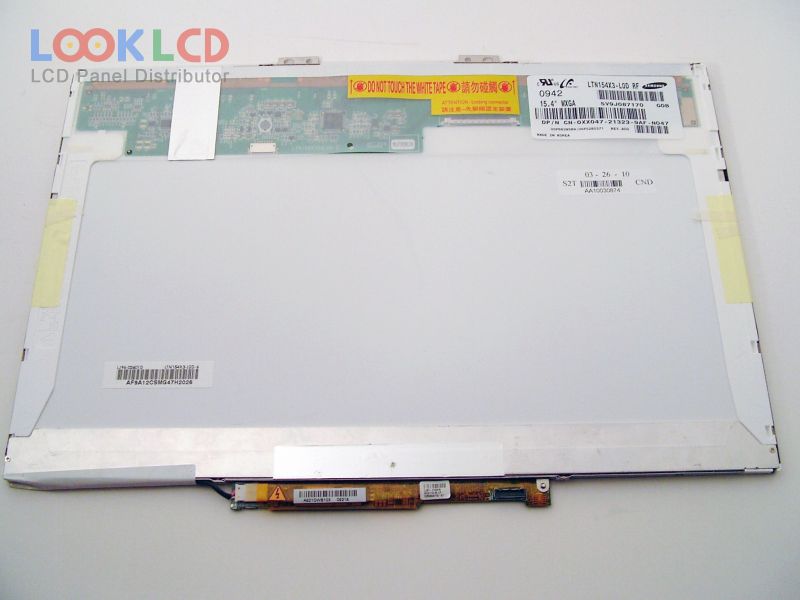

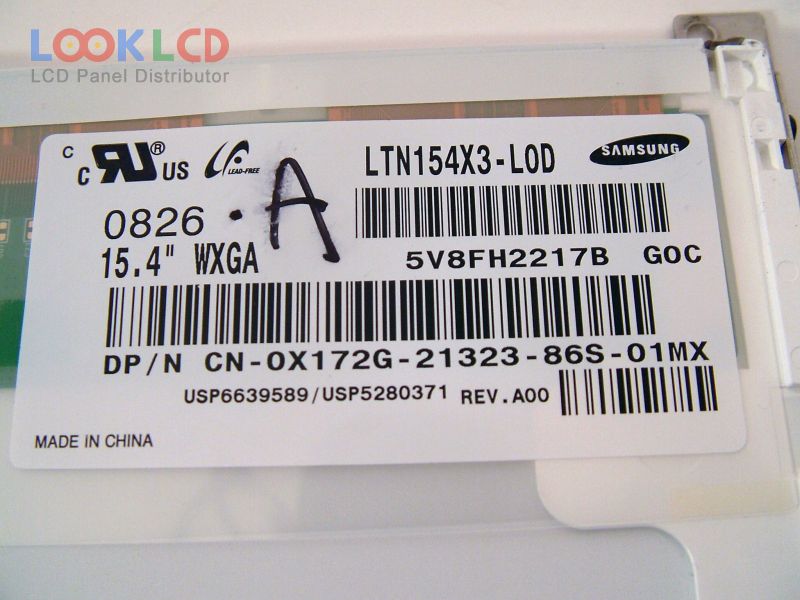

LTN154X3-L0D-G thumb LTN154X3-L0D-G thumb LTN154X3-L0D-G thumb
Merek
Samsung
Ukuran
15.4
Aplikasi
NBPC
Resolusi
1280×800
Komposisi
LCM
Kecerahan
220
CR
300:1
Warna
262K
Lampu latar
CCFL
Antarmuka
LVDS
In Stock
15485
Spesifikasi

Nomor Bagian LTN154X3-L0D-G
MerekSamsung
Ukuran15.4
AplikasiNBPC
Resolusi1280×800
KomposisiLCM
Kecerahan220
CR300:1
Warna262K
Lampu latarCCFL
AntarmukaLVDS
merek panelSAMSUNG
model panelLTN154X3-L0D-G
tipe panel a-Si TFT-LCD , LCM
ukuran panel15.4 inch
resolusi1280(RGB)×800 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif331.2×207 mm
garis besar344×222×6.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan220 cd/m² (Typ.)
rasio kontras300:1 (Min.)
menampilkan warna262K (6-bit)
waktu merespon25 (Typ.)(Tr+Td)
sudut pandang40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu1 pcsCCFLEmbedded (Inverter)
antarmuka sinyalLVDS (1 ch, 6-bit), 30 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
Model Keluarga
LTN154X1-L01 Samsung 15.4 1280×800
LTN154X1-L03 Samsung 15.4 1280×800
LTN154X2-L02 Samsung 15.4 1280×800
LTN154X3-L02 Samsung 15.4 1280×800
LTN154X3-L03 Samsung 15.4 1280×800
LTN154X3-L06-J Samsung 15.4 1280×800
LTN154X3-L09-0 Samsung 15.4 1280×800
LTN154X3-L0D Samsung 15.4 1280×800
LTN154X3-L0D-G Samsung 15.4 1280×800
LTN154X9-L02 Samsung 15.4 1280×800
