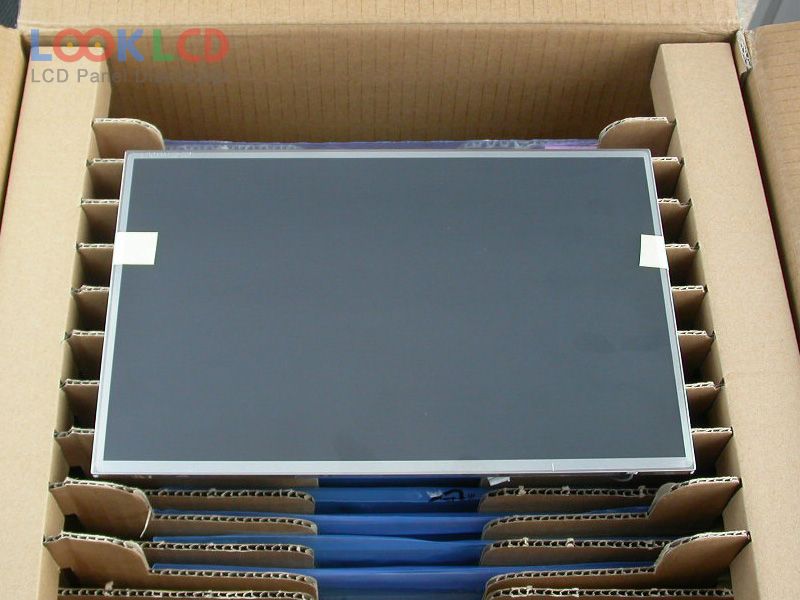

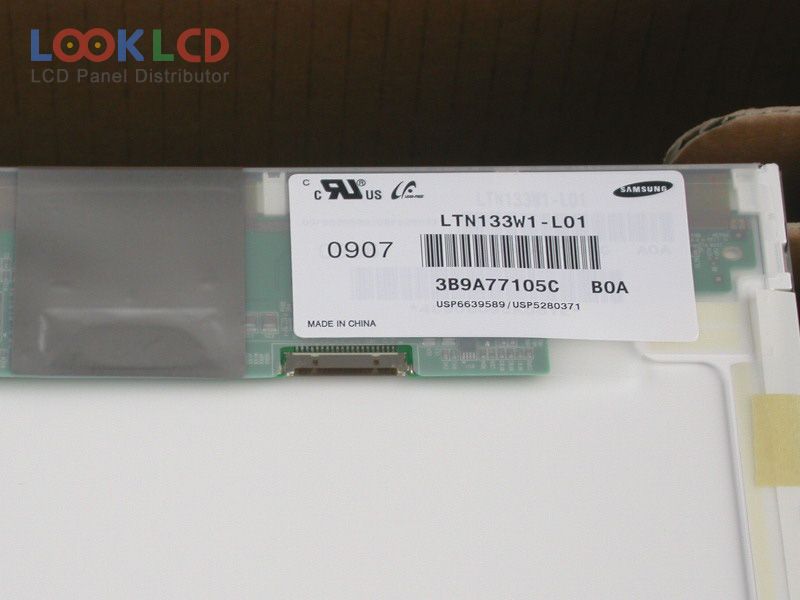

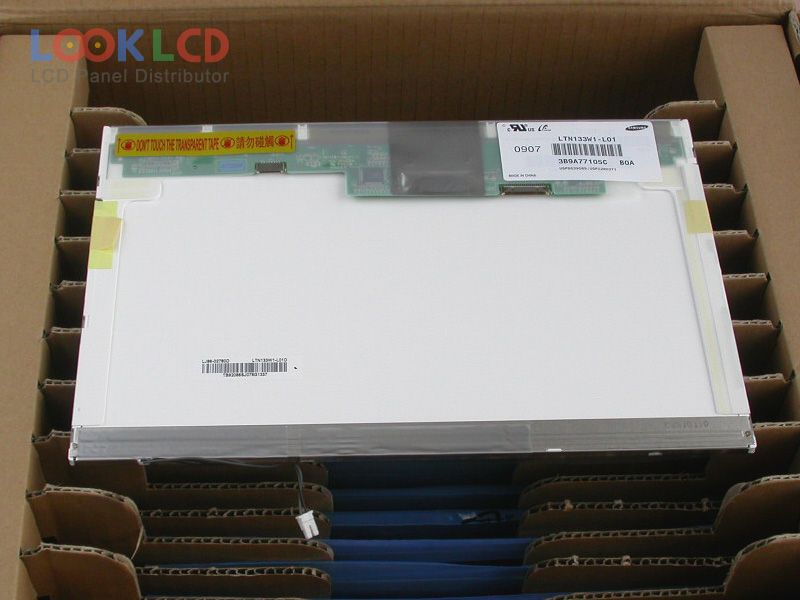

| Nomor Bagian | LTN133W1-L01 |
| Merek | Samsung |
| Ukuran | 13.3 |
| Aplikasi | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTN133W1-L01 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 13.3 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 286.08×178.8 mm |
| garis besar | 299×195×5.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 300:1 (Min.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| roh: | |
| aplikasi | NBPC |
