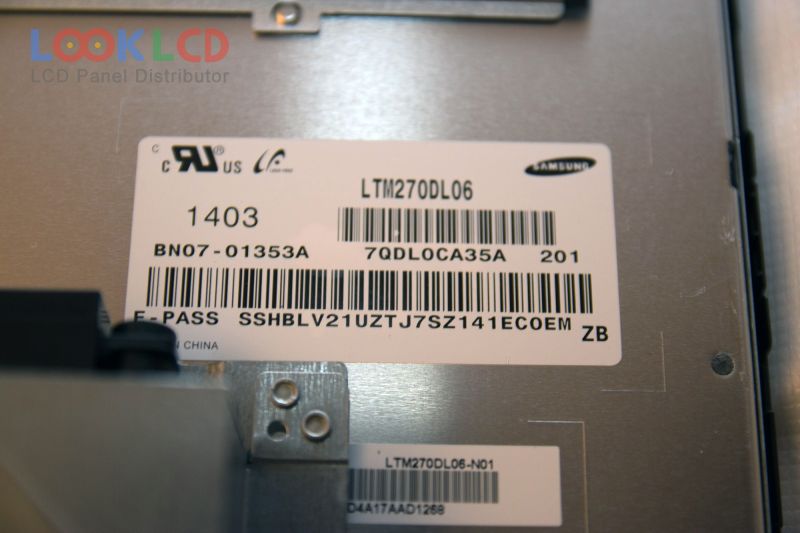

| Nomor Bagian | LTM270DL06 |
| Merek | Samsung |
| Ukuran | 27.0 |
| Aplikasi | DMPC |
| Resolusi | 2560×1440 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTM270DL06 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 27.0 inch |
| resolusi | 2560(RGB)×1440 , Quad-HD |
| mode tampilan | PLS, Normally Black, Transmissive |
| daerah aktif | 596.736×335.664 mm |
| garis besar | 630×368.2×16.1 mm |
| permukaan | Antiglare (Haze 35%), Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), sRGB |
| waktu merespon | 12 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 16S4PWLEDWithout Driver |
| antarmuka sinyal | LVDS (4 ch, 8-bit), 61 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
