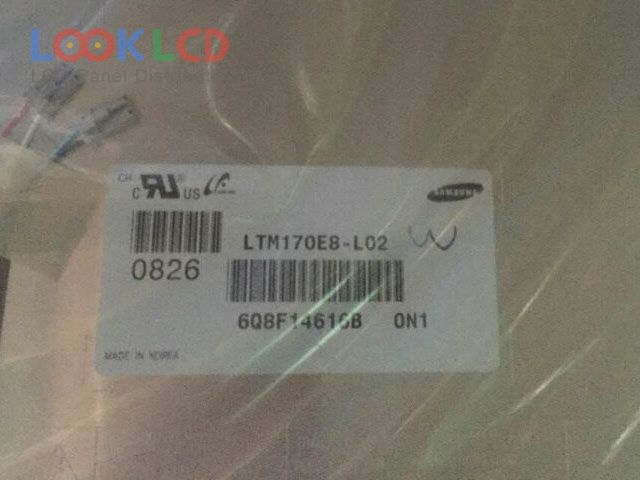

| Nomor Bagian | LTM170E8-L02 |
| Merek | Samsung |
| Ukuran | 17.0 |
| Aplikasi | DMPC |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTM170E8-L02 3 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 17.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mode tampilan | PVA, Normally Black, Transmissive |
| daerah aktif | 337.92×270.336 mm |
| garis besar | 354.9×290.3×13.3 mm |
| permukaan | Antiglare (Haze 44%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193172% |
| waktu merespon | 15/10 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
