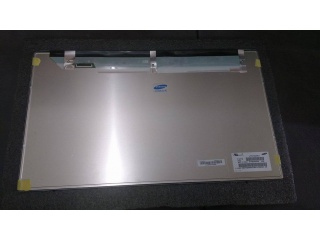

| Nomor Bagian | LTF230AN01 |
| Merek | SAMSUNG |
| Ukuran | 23.0 |
| Aplikasi | TV Sets |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | SAMSUNG |
| model | LTF230AN01 |
| ukuran diagonal | 23.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1366(RGB)×768 [WXGA] 68PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 508.152(H)×285.696(V) mm |
| garis besar redup. | - |
| pencahayaan | - |
| rasio kontras | 4000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 8 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| Modus operasi | PVA, Normally Black, Transmissive |
| warna pendukung | 16.7M 68% NTSC |
| sumber cahaya | WLED |
| berat | - |
| dirancang untuk | TV Sets |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Sumber Daya listrik | 12.0V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
