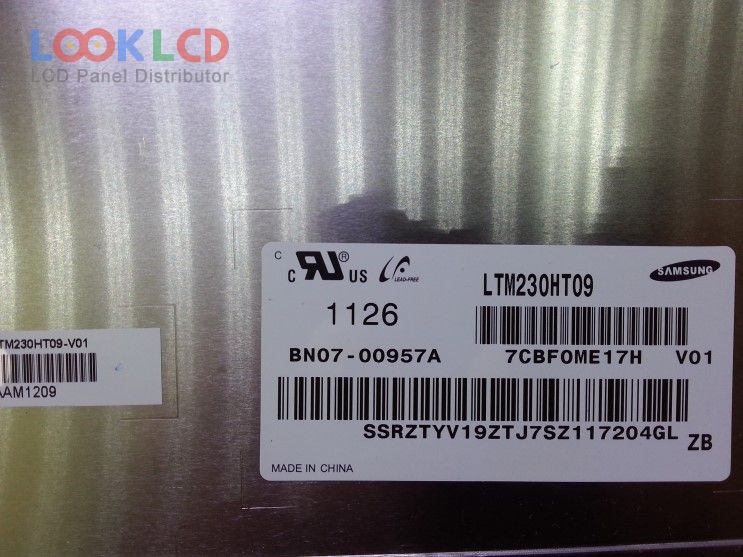

| Nomor Bagian | LTM230HT09 |
| Merek | Samsung |
| Ukuran | 23.0 |
| Aplikasi | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTM230HT09 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 23.0 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 509.76×286.74 mm |
| garis besar | 534×311.7×10.7 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC), CIE193172% |
| waktu merespon | 5 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 13S3PWLEDWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
