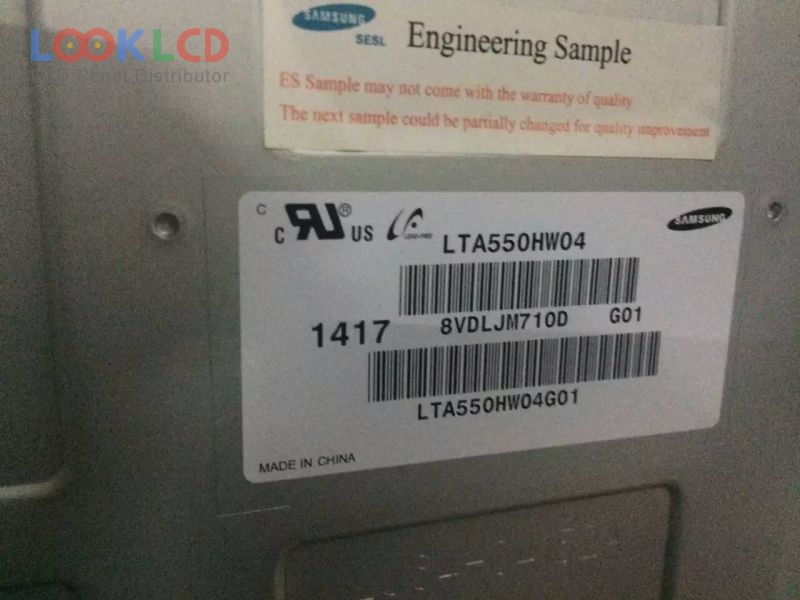

| Nomor Bagian | LTA550HW04 |
| Merek | Samsung |
| Ukuran | 55 |
| Aplikasi | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 4000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTA550HW04 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 55 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | SVA, Normally Black, Transmissive |
| daerah aktif | 1209.6×680.4 mm |
| garis besar | 1229.4×704.2 mm |
| permukaan | Antiglare |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 4000:1 (Typ.) |
| menampilkan warna | 1.07B (8-bit + Dithering), CIE193170% |
| waktu merespon | 6 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 120Hz |
| jenis lampu | 2 stringsWLEDWithout Driver |
| antarmuka sinyal | LVDS (4 ch, 10-bit), 92 pins |
| tegangan masukan | 12.0V (Typ.) |
| aplikasi | LCTV |
