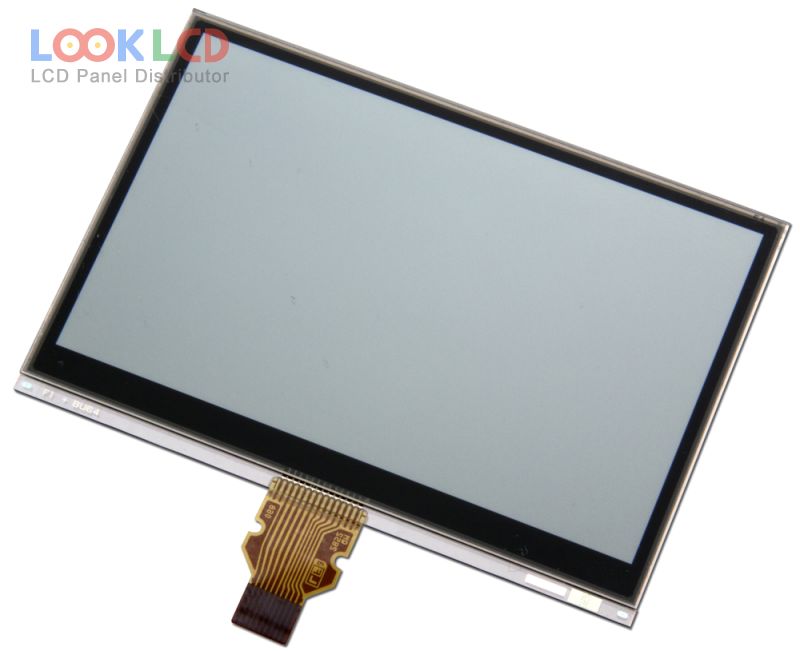

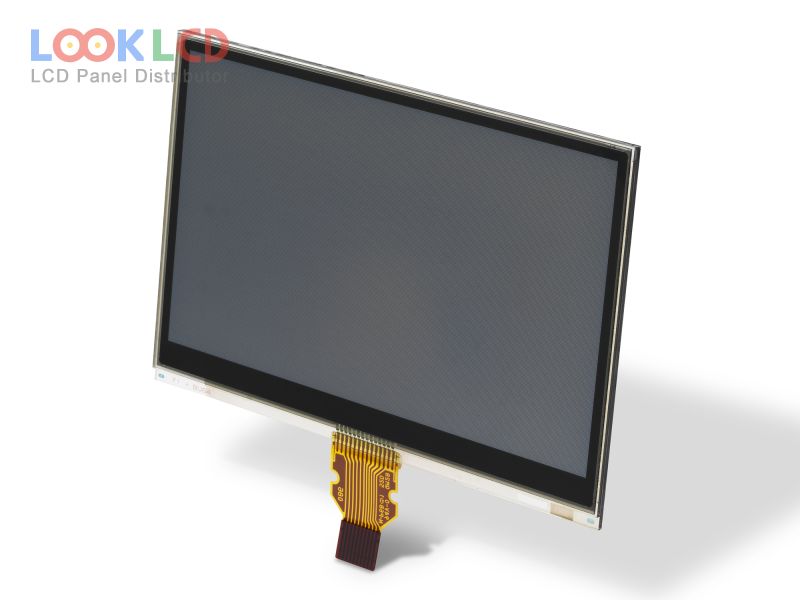

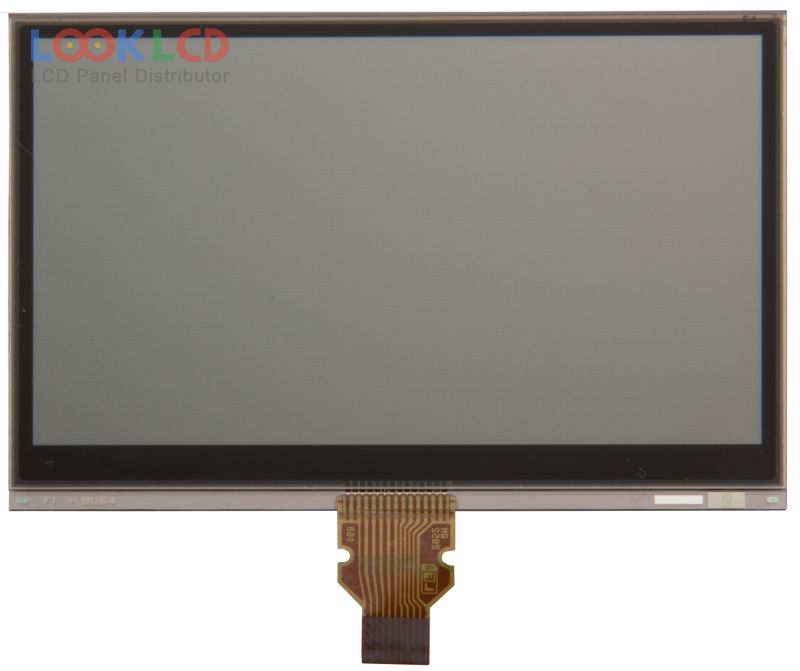

| Nomor Bagian | LS027B7DH01 |
| Merek | SHARP |
| Ukuran | 2.7 |
| Aplikasi | HHP |
| Resolusi | 400×240 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | Monochrome |
| Lampu latar | No B/L |
| Antarmuka | SPI |
| merek panel | SHARP |
| model panel | LS027B7DH01 |
| tipe panel | CG-Silicon , LCM |
| ukuran panel | 2.7 inch |
| resolusi | 400×240 , WQVGA |
| mode tampilan | Transflective |
| daerah aktif | 58.8×35.28 mm |
| garis besar | 62.8×42.82 mm |
| permukaan | Hard coating (3H) |
| kecerahan | |
| rasio kontras | 14:1 (Typ.)(Reflective) |
| menampilkan warna | Monochrome (1-bit) |
| waktu merespon | 10/20 (Typ.)(Tr/Td) |
| sudut pandang | 55/55/60/60 (Min.)(CR≥2)(L/R/U/D) |
| jenis lampu | No B/L |
| antarmuka sinyal | SPI, 10 pins |
| tegangan masukan | 5.0/5.0V (Typ.)(VDD/VDDA) |
| aplikasi | HHP |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M5003-R-E | Other | 2.7 | 128×64 |
| UG-2864ASGIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| 28QVF1J | SII | 2.8 | 240×320 |
| 32WVF0H | SII | 3.2 | 480×800 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
