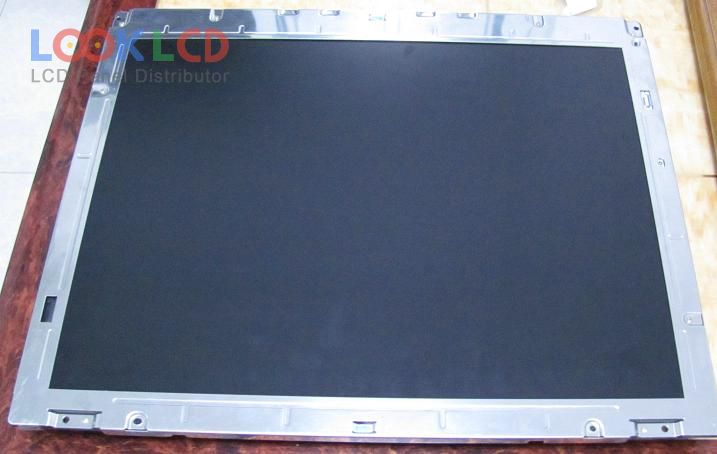

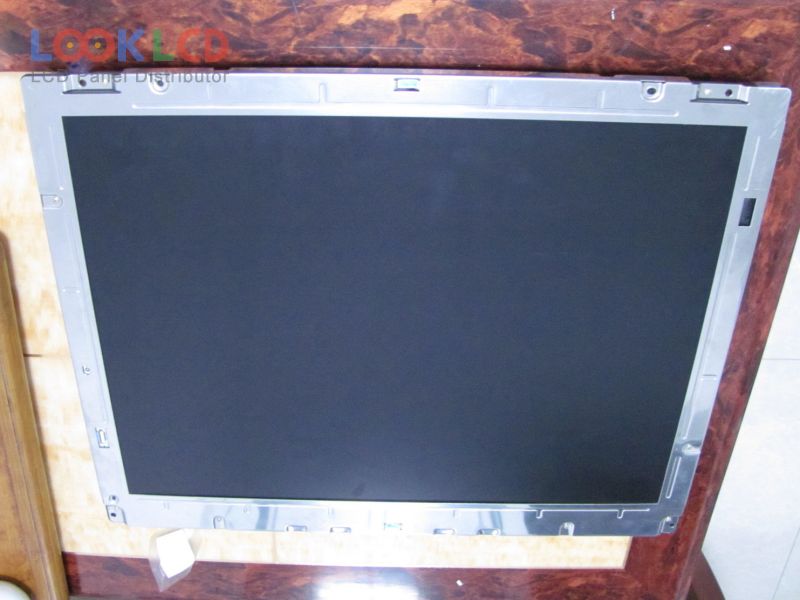

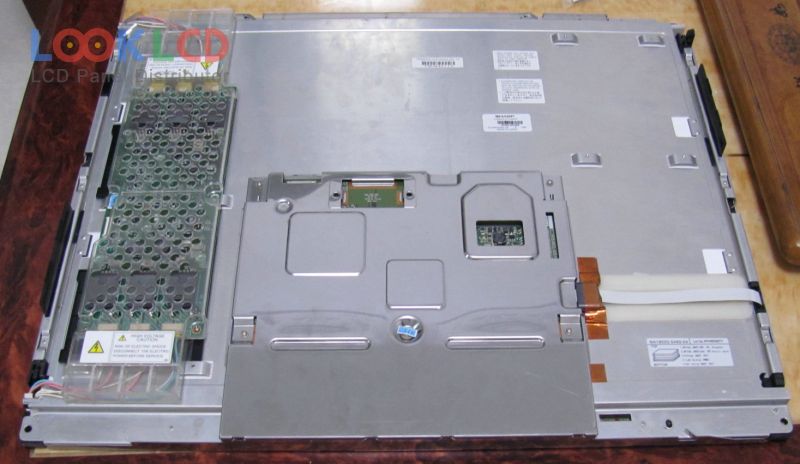

| Nomor Bagian | LQ231U1LW01 |
| Merek | SHARP |
| Ukuran | 23.1 |
| Aplikasi | IA |
| Resolusi | 1600×1200 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | OpenLDI |
| merek panel | SHARP |
| model panel | LQ231U1LW01 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 23.1 inch |
| resolusi | 1600(RGB)×1200 , UXGA |
| mode tampilan | MVA, Normally Black, Transmissive |
| daerah aktif | 470.4×352.8 mm |
| garis besar | 530×432.8×33.5 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| sudut pandang | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| jenis lampu | 6 pcsCCFLEmbedded (Inverter) |
| antarmuka sinyal | OpenLDI, 31 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | IA |
