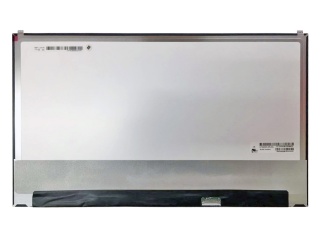

| Nomor Bagian | LP156WF9-SPN1 |
| Merek | LG Display |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | LG Display |
| ukuran panel | 15.6" |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| area tampilan | 344.16(W)×193.59(H) mm |
| ukuran garis besar | 350.66(W)×205.8(H) ×4.4(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 262K 99% sRGB |
| frekuensi | 60Hz |
| gaya bentuk | Slim (PCBA Bent, T≤3.0mm) |
| antarmuka sinyal | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | LP156WF9-SPN1 (LGD05A8) |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Glare (Haze 0%) |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | IPS, Normally Black, Transmissive |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 12K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Laptop |
