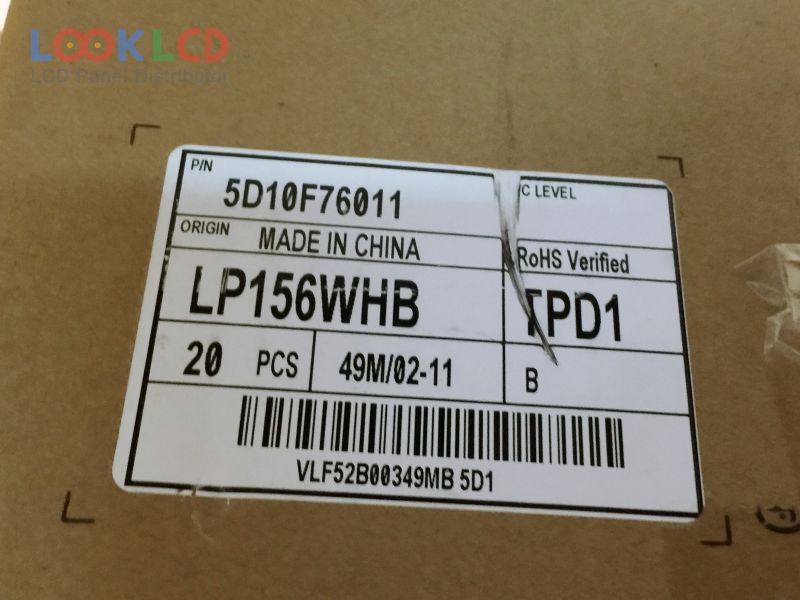

| Nomor Bagian | LP156WHB-TPD1 |
| Merek | LG Display |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | LG Display |
| model panel | LP156WHB-TPD1 18 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.5×223.5×3.8 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Antiglare |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 350:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193145% |
| waktu merespon | 16 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | eDP (1 Lane), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
