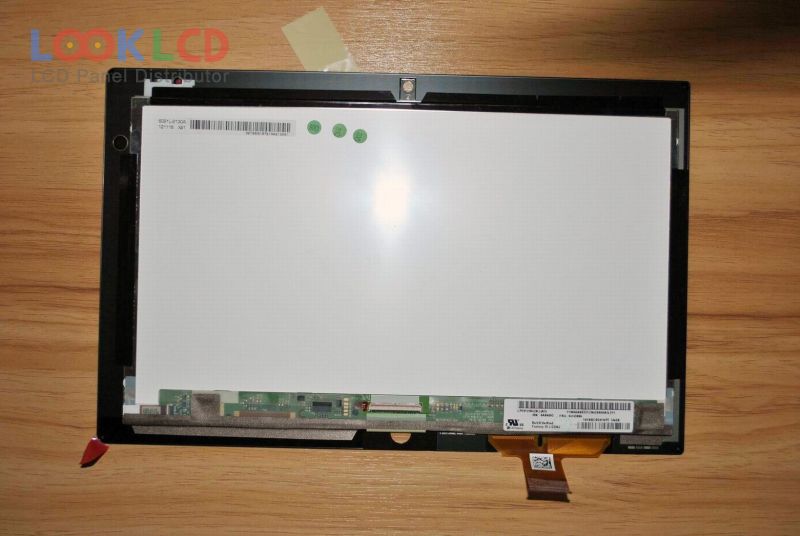

LP101WH4-SLA3

LP101WH4-SLA3
LP101WH4-SLA3 thumb
Merek
LG Display
Ukuran
10.1
Aplikasi
PAD
Resolusi
1366×768
Komposisi
Assembly
Kecerahan
360
CR
800:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
LVDS
In Stock
1025
Spesifikasi

Nomor Bagian LP101WH4-SLA3
MerekLG Display
Ukuran10.1
AplikasiPAD
Resolusi1366×768
KomposisiAssembly
Kecerahan360
CR800:1
Warna16.7M
Lampu latarWLED
AntarmukaLVDS
merek panelLG Display
model panelLP101WH4-SLA3
tipe panel a-Si TFT-LCD , Assembly
ukuran panel10.1 inch
resolusi1366(RGB)×768 , WXGA
daerah aktif222.52×125.11 mm
garis besar251.3×160.6×5.8 mm
permukaanAnti Fingerprint, Hard coating (8H)
kecerahan360 cd/m² (Typ.)
rasio kontras800:1 (Typ.)
menampilkan warna16.7M (8-bit)
sudut pandang85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
antarmuka sinyalLVDS (1 ch, 8-bit), 40 pins
tegangan masukan3.3V (Typ.)
aplikasiPAD
Model Keluarga
LP101WH1-TLA3 LG Display 10.1 1366×768
LP101WH1-TLP1 LG Display 10.1 1366×768
LP101WH2-TLA2 LG Display 10.1 1366×768
LP101WH4-SLA6 LG Display 10.1 1366×768
LP101WH4-SLAB LG Display 10.1 1366×768
LP101WS1-TLB1 LG Display 10.1 1024×576
LP101WSA-TLB1 LG Display 10.1 1024×600
LP101WSB-TLN1 LG Display 10.1 1024×600
LP101WX1-SLB1 LG Display 10.1 1280×800
LP101WX2-SLA1 LG Display 10.1 1280×800
