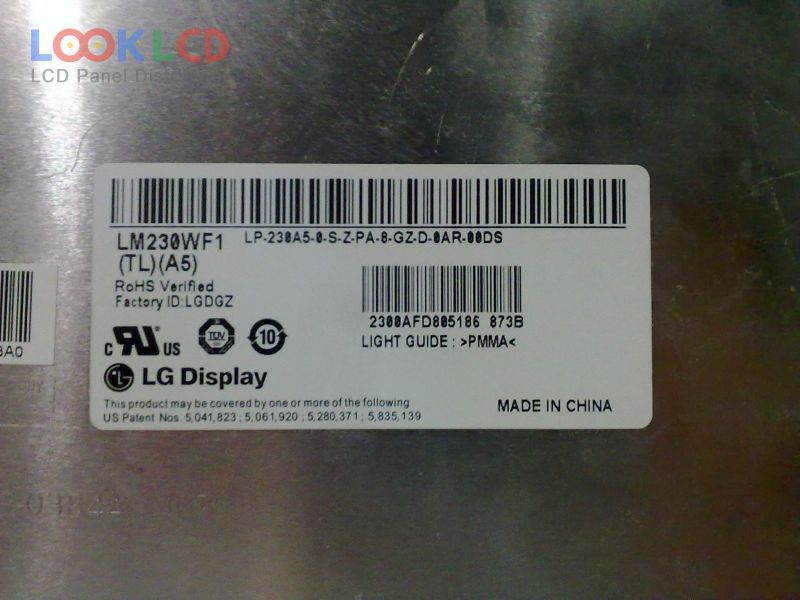

| Nomor Bagian | LM230WF1-TLA5 |
| Merek | LG Display |
| Ukuran | 23.0 |
| Aplikasi | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | LG Display |
| model panel | LM230WF1-TLA5 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 23.0 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 509.184×286.416 mm |
| garis besar | 533.2×312×17 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC), CIE193172% |
| waktu merespon | 1.3/3.7 (Typ.)(Tr/Td) |
| sudut pandang | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
