LG Display LC470WUE-SEP1 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

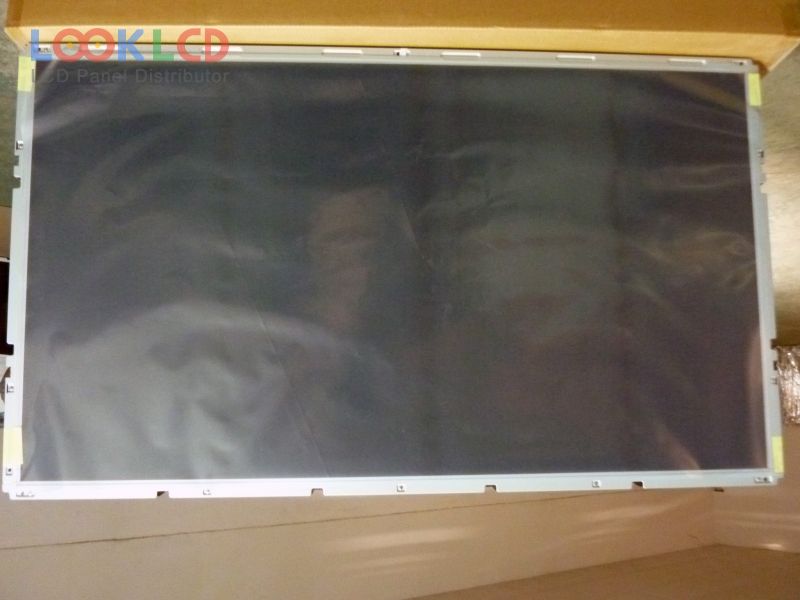

LC470WUE-SEP1

LC470WUE-SEP1
LC470WUE-SEP1
LC470WUE-SEP1 thumb LC470WUE-SEP1 thumb
Merek
LG Display
Ukuran
47
Aplikasi
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
400
CR
1100:1
Warna
16.7M/1.06B
Lampu latar
EEFL
Antarmuka
LVDS
In Stock
17512
Spesifikasi

Nomor Bagian LC470WUE-SEP1
MerekLG Display
Ukuran47
AplikasiLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan400
CR1100:1
Warna16.7M/1.06B
Lampu latarEEFL
AntarmukaLVDS
merek panelLG Display
model panelLC470WUE-SEP1
tipe panela-Si TFT-LCD , LCM
ukuran panel47 inch
resolusi1920(RGB)×1080 , FHD
mode tampilanIPS, Normally Black, Transmissive
daerah aktif1039.68×584.82 mm
garis besar1096×640 mm
permukaanAntiglare (Haze 1%), Hard coating (2H)
kecerahan400 cd/m² (Typ.)
rasio kontras1100:1 (Typ.)
menampilkan warna16.7M/1.06B (8-bit / 8-bit + FRC), CIE193172%
waktu merespon5.0(Typ.)(G to G)
sudut pandang89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu20 pcsEEFLWithout Driver
antarmuka sinyalLVDS (2 ch, 8/10-bit) , 51 pins
tegangan masukan12.0V (Typ.)
aplikasiLCTV
Model Keluarga
LC470WU1-SLA1 LG Display 47 1920×1080
LC470WUD-SCM1 LG Display 47 1920×1080
LC470WUE-SDP1 LG Display 47 1920×1080
LC470WUE-SEP1 LG Display 47 1920×1080
LC470WUF-SBF1 LG Display 47 1920×1080
LC470WUF-SCA2 LG Display 47 1920×1080
LC470WUF-SCA3 LG Display 47 1920×1080
LC470WUL-SBT1 LG Display 47 1920×1080
LC470WUN-SCA1 LG Display 47 1920×1080
LC470WUN-SDA1 LG Display 47 1920×1080
