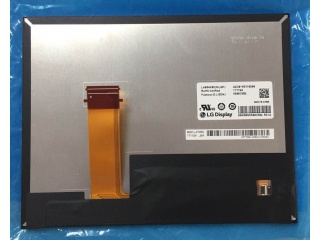

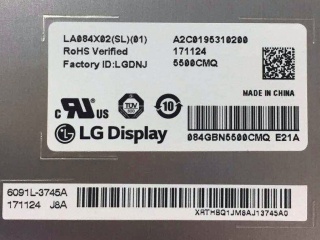

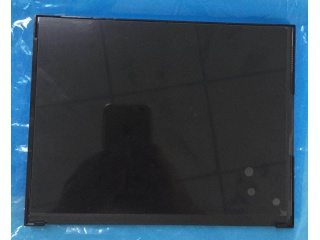

| Nomor Bagian | LA084X02-SL01 |
| Merek | LG Display |
| Ukuran | 8.4 |
| Aplikasi | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.2M |
| Lampu latar | 10S3P |
| Antarmuka | LVDS |
| pabrikan | LG Display |
| nama model | LA084X02-SL01 |
| ukuran layar | 8.4 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1024(RGB)×768 (XGA) 152PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 170.496 × 127.872 (H×V) |
| garis besar (mm) | 184.5 × 143 × 9.95 (H×V×D) |
| pencahayaan | 1200 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Min.)(CR≥10) |
| tanggapan | 40 (Max.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.2M 70% NTSC |
| lampu latar | 10S3P WLED , No Driver |
| massa | 255/260g (Typ./Max.) |
| digunakan untuk | Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (1 ch, 8-bit) , FPC 40 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 m/s²) |
