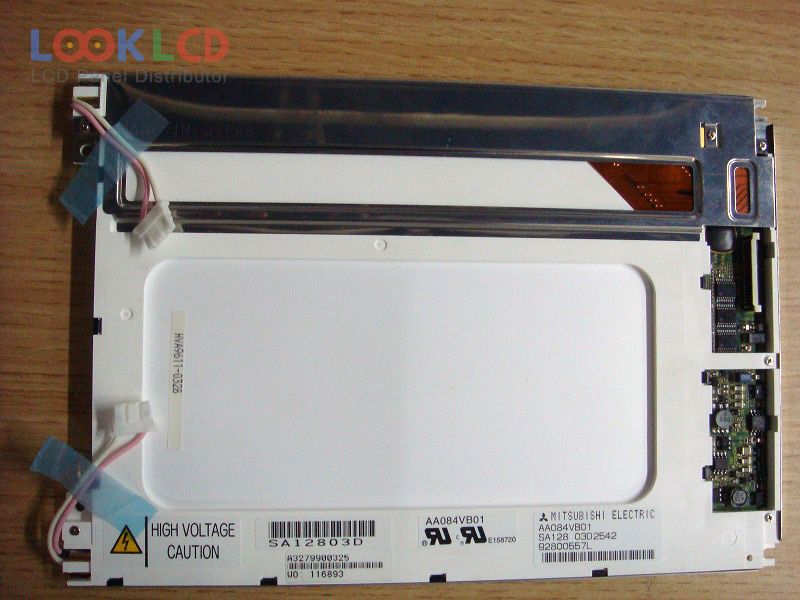

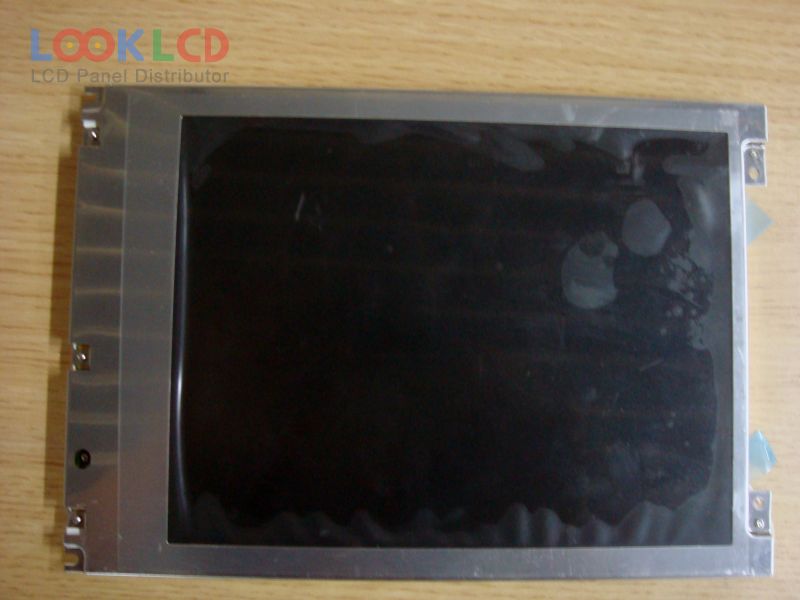

| Nomor Bagian | AA084VB01 |
| Merek | Mitsubishi |
| Ukuran | 8.4 |
| Aplikasi | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 150:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | TTL |
| merek panel | Mitsubishi |
| model panel | AA084VB01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 8.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 170.88×128.16 mm |
| garis besar | 221×152.4 mm |
| permukaan | Antiglare (Haze 12%) |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 150:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 20/30 (Typ.)(Tr/Td) |
| sudut pandang | 60/60/50/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antarmuka sinyal | CMOS (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.)(VCC) |
| aplikasi | IA |
