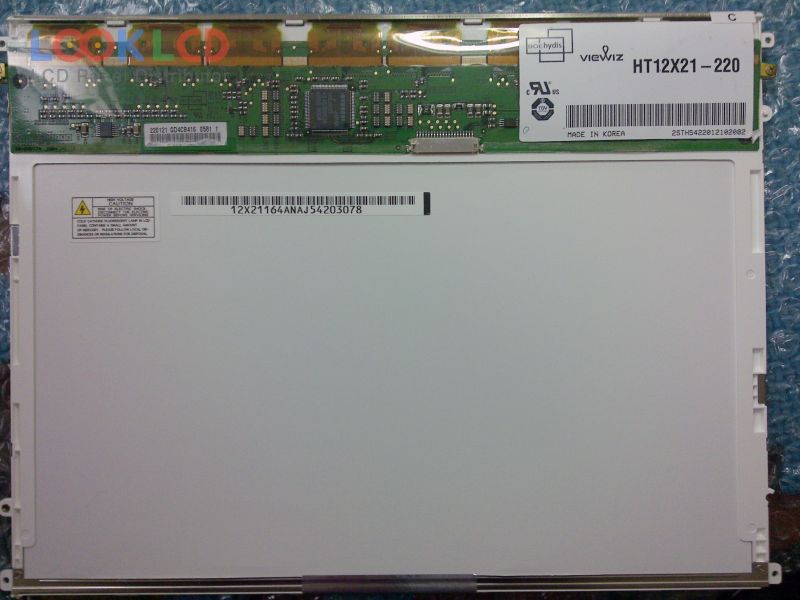

| Nomor Bagian | HT12X21-220 |
| Merek | HYDIS |
| Ukuran | 12.1 |
| Aplikasi | PAD |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 180 |
| CR | 450:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | BOE HYDIS |
| model panel | HT12X21-220 2 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 12.1 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mode tampilan | AFFS, Normally Black, Transmissive |
| daerah aktif | 245.76×184.32 mm |
| garis besar | 270×199×7.2 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 180 cd/m² (Typ.) |
| rasio kontras | 450:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193140% |
| waktu merespon | 40 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
