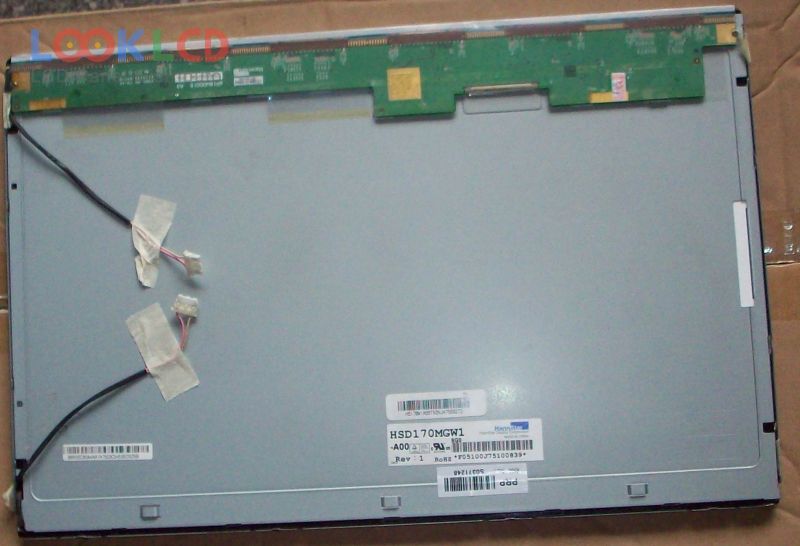

| Nomor Bagian | HSD170MGW1-B00 |
| Merek | HannStar |
| Ukuran | 17.0 |
| Aplikasi | DMPC |
| Resolusi | 1440×900 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 600:1 |
| Warna | 16.2M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | HannStar |
| model panel | HSD170MGW1-B00 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 17.0 inch |
| resolusi | 1440(RGB)×900 , WXGA+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 367.2×229.5 mm |
| garis besar | 389.2×254.5×11.8 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 16.2M (6-bit + FRC), CIE193163% |
| waktu merespon | 3/5 (Typ.)(Tr/Td) |
| sudut pandang | 80/80/65/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
