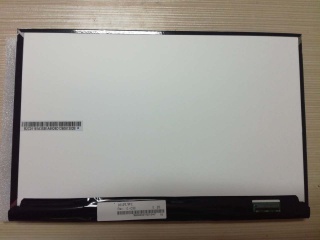

| Nomor Bagian | HSD101PUW1-C30 |
| Merek | HannStar |
| Ukuran | 10.1 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | HannStar |
| model | HSD101PUW1-C30 |
| ukuran diagonal | 10.1 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1200 [WUXGA] 225PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 216.576(H)×135.36(V) mm |
| garis besar redup. | - |
| pencahayaan | - |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| Modus operasi | IPS Pro, Normally Black, Transmissive |
| warna pendukung | 16.7M 50% NTSC |
| sumber cahaya | WLED , 15K hours |
| berat | - |
| dirancang untuk | Pad & Tablet |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
