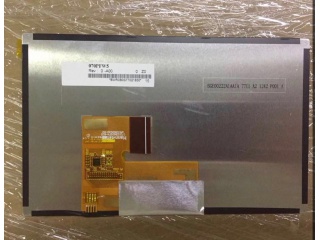

| Nomor Bagian | HSD070PFW5-A00 |
| Merek | HannStar |
| Ukuran | 7.0 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1024×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 3S7P |
| Antarmuka | MIPI |
| pabrikan | HannStar |
| nama model | HSD070PFW5-A00 |
| ukuran layar | 7.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1024(RGB)×600 (WSVGA) 169PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 153.6 × 90 (H×V) |
| garis besar (mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Hard coating |
| pencahayaan | 550 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 13/15 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | 3S7P WLED , 10K hours , With LED Driver |
| massa | 75.0/85.0g (Typ./Max.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | MIPI (4 data lanes) , 40 pins Connector |
| sumber tegangan | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| maks. peringkat | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
