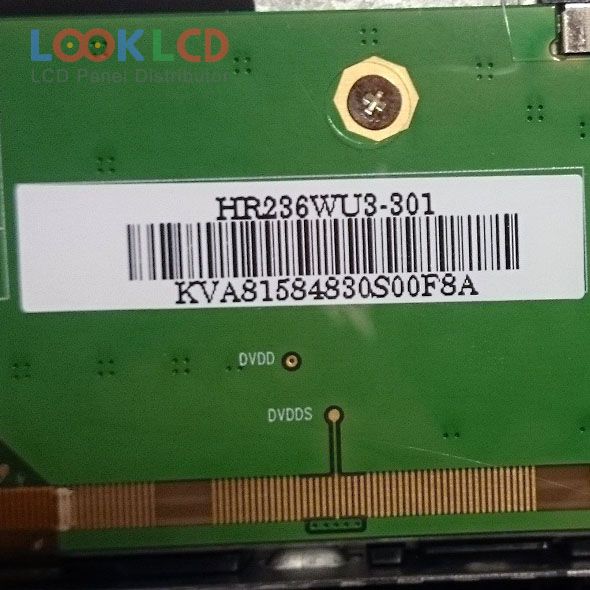

| Nomor Bagian | HR236WU3-301 |
| Merek | BOE |
| Ukuran | 23.6 |
| Aplikasi | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | LVDS |
| merek panel | BOE |
| model panel | HR236WU3-301 |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 23.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | ADS, Normally Black, Transmissive |
| daerah aktif | 521.28×293.22 mm |
| garis besar | 535.9×307 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kedalaman kaca | 0.50+0.50 mm |
| keterusan | 4.35% (Typ.)(with Polarizer) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC) |
| waktu merespon | 14 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
