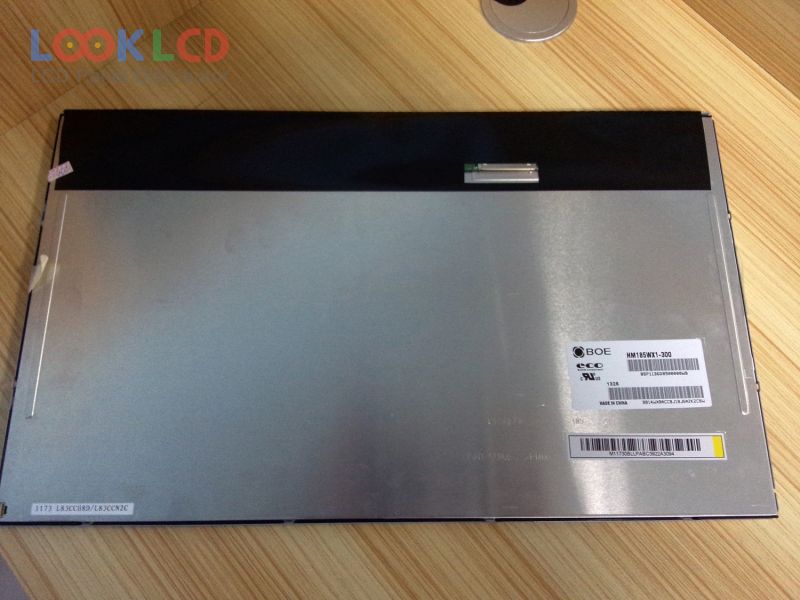

| Nomor Bagian | HM185WX1-300 |
| Merek | BOE |
| Ukuran | 18.5 |
| Aplikasi | DMPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | BOE |
| model panel | HM185WX1-300 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 18.5 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 409.8×230.4 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC) |
| waktu merespon | 1.5/3.5 (Typ.)(Tr/Td) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
