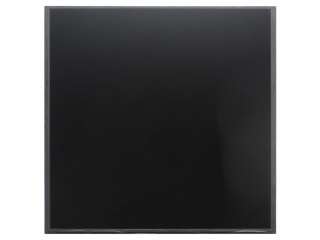

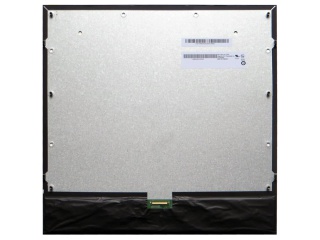

| Nomor Bagian | G170HAN01.0 |
| Merek | AUO |
| Ukuran | 17.0 |
| Aplikasi | Industrial |
| Resolusi | 1920×1920 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 9S6P |
| Antarmuka | |
| merek panel | AUO |
| ukuran panel | 17.0" |
| resolusi | 1920(RGB)×1920, 159PPI |
| area tampilan | 305.28(W)×305.28(H) mm |
| ukuran garis besar | 325.01(W)×319.33(H) ×12.2(D) mm |
| kecerahan | 600 cd/m² (Typ.) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M 72% NTSC |
| frekuensi | 60Hz |
| berat | 1.20Kgs (Max.) |
| model panel | G170HAN01.0 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Antiglare, Hard coating (3H) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | AHVA, Normally Black, Transmissive |
| waktu merespon | 13/12 (Typ.)(Tr/Td) |
| jenis lampu | 9S6P WLED , 50K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
| G170J1-LE1 | Innolux | 17.0 | 1920×1200 |
| LB170X01-TL01 | LG Display | 17.0 | 1024×502 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LQ170M1LA4B | SHARP | 17.0 | 1920×1200 |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170EG01 V8 | AUO | 17.0 | 1280×1024 |
| QD17EL07 Rev.09 | QDI | 17.0 | 1280×1024 |
| TD170WGCA1 | TPO | 17.0 | 1280×1024 |
