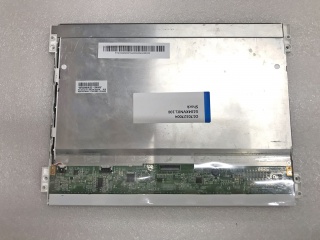

| Nomor Bagian | G104XVN01.1 |
| Merek | AUO |
| Ukuran | 10.4 |
| Aplikasi | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | G104XVN01.1 |
| ukuran panel | 10.4" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1024(RGB)×768, XGA, 123PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 210.4(W)×157.8(H) mm |
| bukaan bezel | 215.4(W)×161.8(H) mm |
| ukuran garis besar | 238.6(W)×175.8(H) ×7(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | - |
| rasio kontras | 3000:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | AMVA3, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 20/10 (Typ.)(Tr/Td) |
| menampilkan warna | 262K/16.2M |
| jenis lampu | WLED , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | - |
| aplikasi | Industrial |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| G104X1-L01 | Innolux | 10.4 | 1024×768 |
| G104X1-L02 | Innolux | 10.4 | 1024×768 |
| G104X1-L03 | Innolux | 10.4 | 1024×768 |
| G104X1-L04 | Innolux | 10.4 | 1024×768 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| TM104QDSG09 | Tianma | 10.4 | 640×480 |
