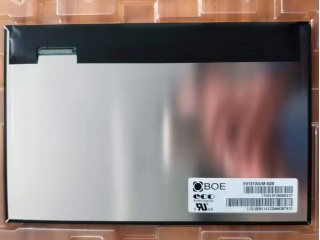

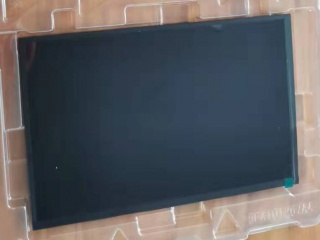

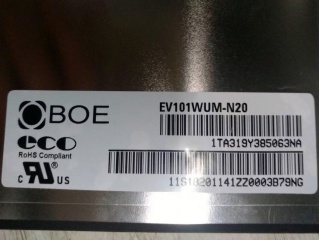

| Nomor Bagian | EV101WUM-N20 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | Medical Imaging |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | BOE |
| model | EV101WUM-N20 |
| ukuran diagonal | 10.1 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1200 [WUXGA] 224PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 216.806(H)×135.504(V) mm |
| garis besar redup. | 229.45(H)×149.22(V) mm |
| pencahayaan | 600 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | ADS, Normally Black, Transmissive |
| warna pendukung | 16.7M 72% NTSC |
| sumber cahaya | WLED , W/O Driver |
| berat | - |
| dirancang untuk | Medical Imaging |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 8-bit) , 45 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 80 °C |
