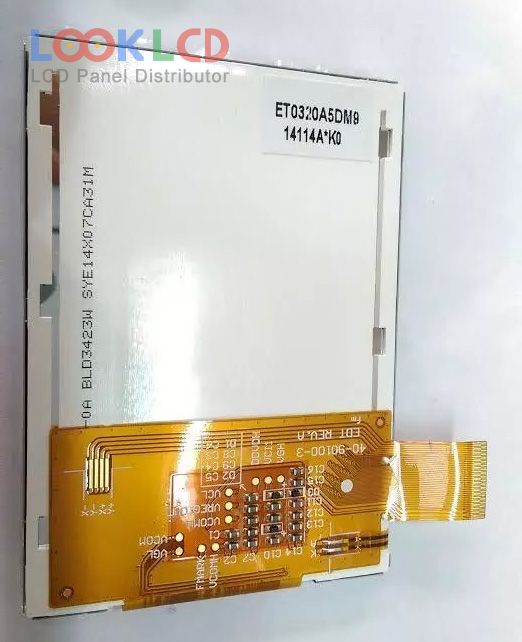

| Nomor Bagian | ET0320A5DM9 |
| Merek | EDT |
| Ukuran | 3.2 |
| Aplikasi | MPH |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 450:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | CPU |
| merek panel | EDT |
| model panel | ET0320A5DM9 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 3.2 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 48.6×64.8 mm |
| garis besar | 55.14×76.8×6 mm |
| permukaan | |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 450:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 5/15 (Typ.)(Tr/Td) |
| sudut pandang | 63/70/65/72 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6S1PWLEDWithout Driver |
| antarmuka sinyal | 8/9/16/18-bit 8080 parallel, 41 pins |
| tegangan masukan | 3.3/3.3V (Typ.)(IOVCC/VCC) |
| aplikasi | MPH |
