| Nomor Bagian | COM121T9M14CSS |
| Merek | Ortustech |
| Ukuran | 12.1 |
| Aplikasi | Industrial |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | Ortustech |
| model | COM121T9M14CSS |
| ukuran diagonal | 12.1 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×600 [SVGA] 82PPI |
| konfigurasi | RGB Vertical Stripe |

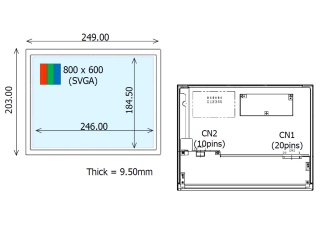

| daerah aktif | 246(H)×184.5(V) mm |
| garis besar redup. | 260.5(H)×203(V) ×10(D) mm |
| pencahayaan | 600 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 40 (Max.)(Tr+Td) |
| sudut pandang | 88/88/88/88 (Typ.)(CR≥10) |
| Modus operasi | FFS, Normally Black, Transmissive |
| warna pendukung | 262K/16.7M 48% NTSC |
| sumber cahaya | WLED , 70K hours , With LED Driver |
| berat | 500g (Typ.) |
| dirancang untuk | Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
