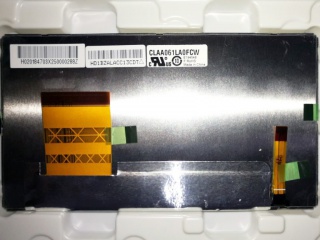

| Nomor Bagian | CLAA061LA0FCW |
| Merek | CPT |
| Ukuran | 6.1 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | CPT |
| ukuran panel | 6.1" |
| resolusi | 800(RGB)×480, WVGA, 153PPI |
| area tampilan | 136.2(W)×72(H) mm |
| kecerahan | - |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10) |
| tampilan terbaik di | 6 o'clock |
| menampilkan warna | 262K 70% NTSC |
| frekuensi | 60Hz |
| berat panel | - |
| antarmuka sinyal | TTL (1 ch, 6-bit) |
| lingkungan | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model panel | CLAA061LA0FCW |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 400:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| jenis lampu | WLED |
| layar sentuh | Without |
| aplikasi | Automotive Display |
