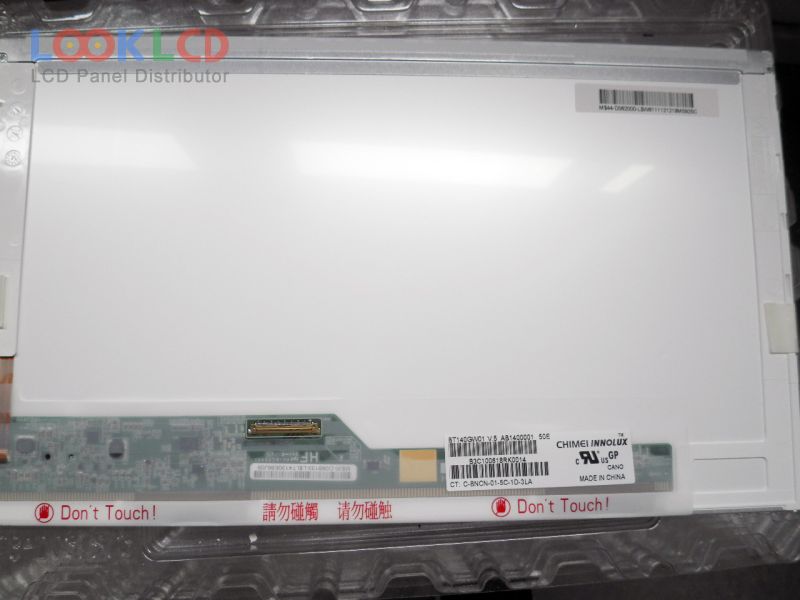

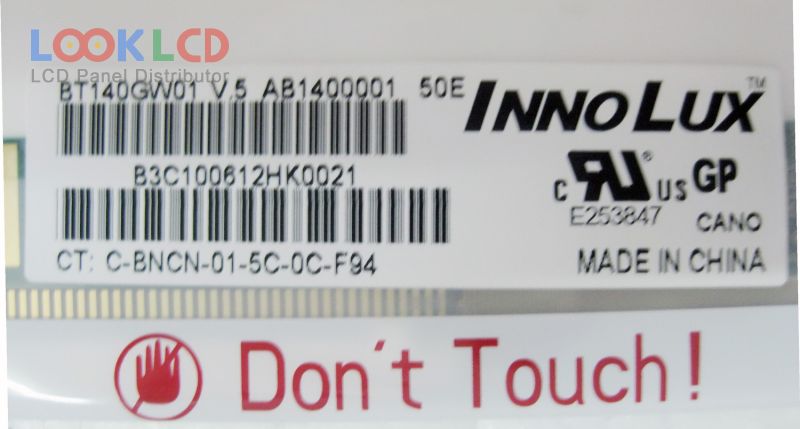

BT140GW01 V.5

BT140GW01 V.5
BT140GW01 V.5
BT140GW01 V.5 thumb BT140GW01 V.5 thumb
Merek
Innolux
Ukuran
14.0
Aplikasi
NBPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
200
CR
600:1
Warna
262K
Lampu latar
WLED
Antarmuka
LVDS
In Stock
1542
Spesifikasi

Nomor Bagian BT140GW01 V.5
MerekInnolux
Ukuran14.0
AplikasiNBPC
Resolusi1366×768
KomposisiLCM
Kecerahan200
CR600:1
Warna262K
Lampu latarWLED
AntarmukaLVDS
merek panelCHIMEI INNOLUX
model panelBT140GW01 V.5 4 Compatible model
tipe panel a-Si TFT-LCD , LCM
ukuran panel14.0 inch
resolusi1366(RGB)×768 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif309.399×173.952 mm
garis besar323.5×192×5.2 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan200 cd/m² (Typ.)
rasio kontras600:1 (Typ.)
menampilkan warna262K (6-bit), CIE193145%
waktu merespon8 (Typ.)(Tr+Td)
sudut pandang40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuWLEDEmbedded (LED Driver)
antarmuka sinyalLVDS (1 ch, 6-bit), 40 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
Model Keluarga
B140XTN03.1 AUO 14.0 1366×768
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
LP140WF1-SPB1 LG Display 14.0 1920×1080
